Isolation Discs With PSA

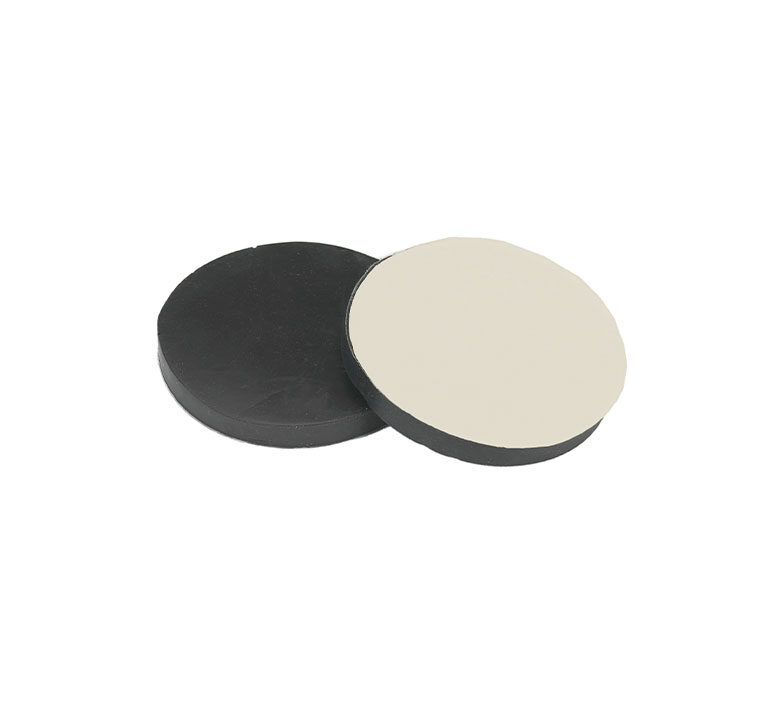

The Sorbothane® Isolation Discs with Pressure Sensitive Adhesive (PSA) feature a universal circular shape and full surface contact that supports an extensive range of loads. The Pressure Sensitive Adhesive provides exceptional temperature and chemical resistance and can withstand tough application environments. Firm application pressure, and the amount of adhesive-to-surface contact, combines to develop superior bonding strength.
Product PDF CAD Models-
Typical applications
- Audio Equipment
- Computer
- Electronic Units
- Small Machinery / Bench Equipment
- Video Components
-
More details
Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and the amount of adhesive-to-surface contact, combines to develop superior bonding strength.
| Part Number | Diameter | Height | Durometer +/-5 | Load Rating |
|---|---|---|---|---|
| 0531026-30-10 | 1.000 | 0.250 | 30 | 2.5 - 4.5 lbs |
| 0531026-50-10 | 1.000 | 0.250 | 50 | 6.5 - 14.5 lbs |
| 0531026-70-10 | 1.000 | 0.250 | 70 | 30 - 65 lbs |
| 0531051-30-10 | 1.000 | 0.500 | 30 | 1 - 2.4 lbs |
| 0531051-50-10 | 1.000 | 0.500 | 50 | 3.5 - 7 lbs |
| 0531051-70-10 | 1.000 | 0.500 | 70 | 14 - 35 lbs |
| 0531526-30-10 | 1.500 | 0.250 | 30 | 9 - 20 lbs |
| 0531526-50-10 | 1.500 | 0.250 | 50 | 27 - 60 lbs |
| 0531526-70-10 | 1.500 | 0.250 | 70 | 120 - 280 lbs |
| 0531551-30-10 | 1.500 | 0.500 | 30 | 3.5 - 7.5 lbs |
| 0531551-50-10 | 1.500 | 0.500 | 50 | 10 - 23 lbs |
| 0531551-70-10 | 1.500 | 0.500 | 70 | 45 - 110 lbs |
| 0510436-30-10 | 2.250 | 0.250 | 30 | 40 - 90 lbs |
| 0510436-50-10 | 2.250 | 0.250 | 50 | 120 - 270 lbs |
| 0510436-70-10 | 2.250 | 0.250 | 70 | 530 - 1320 lbs |
| 0532351-30-10 | 2.250 | 0.500 | 30 | 13 - 29 lbs |
| 0532351-50-10 | 2.250 | 0.500 | 50 | 40 - 85 lbs |
| 0532351-70-10 | 2.250 | 0.500 | 70 | 170 - 415 lbs |
