Isolation Hemispheres With Urethane Coating & PSA

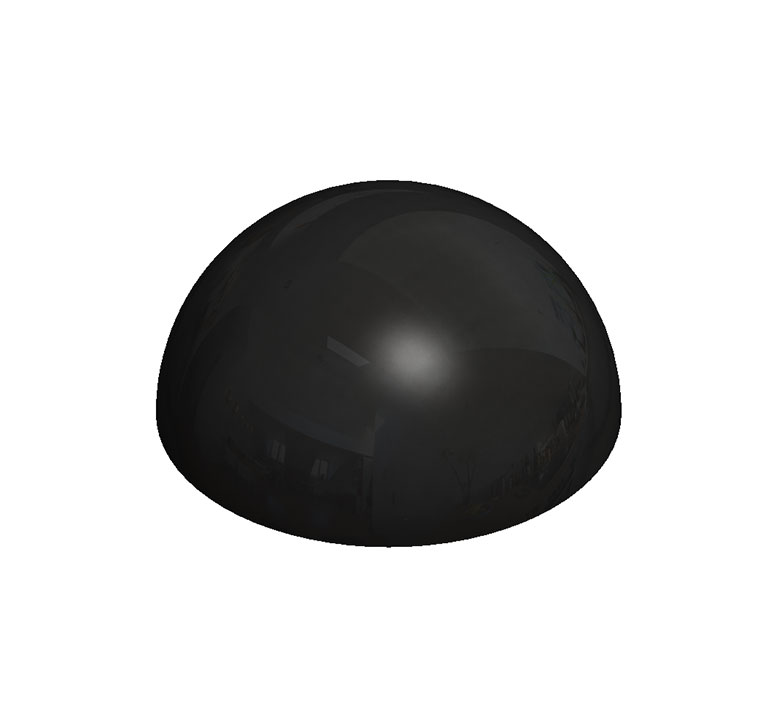

Urethane coated Sorbothane® Hemisphere mounts with Pressure Sensitive Adhesive (PSA) provide a quick, cost-effective method of isolating vibration. Place the hemispheres under the unit to be isolated. Expect a 20 to 30% deflection when statically loaded. Under loading will result in poor isolation.

Product PDF CAD Files
  • Typical applications
    • Audio Equipment
    • Computer Hardware
    • Electronic Devices
    • Lab Equipment
    • Small Machinery
    • Video Components
  • More details
    The thin urethane coating reduces the amount of natural tack helping to make the Sorbothane® Hemisphere easier to handle. The coating also reduces surface friction and adds a layer of protection from elements. Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and the amount of adhesive-to-surface contact, combines to develop superior bonding strength.
  • Available in water-resistant
    Learn more about the benefits of Water-Resistant Sorbothane.
Part Number Diameter Height Durometer Load Rating
Part Number: 0510028-30-10 Diameter: 0.250 Height: 0.125 Durometer: 30 Load Rating: 0.034 - 0.068 lbs
Part Number: 0510028-50-10 Diameter: 0.250 Height: 0.125 Durometer: 50 Load Rating: 0.054 - 0.124 lbs
Part Number: 0510028-70-10 Diameter: 0.250 Height: 0.125 Durometer: 70 Load Rating: 0.166 - 0.356 lbs
Part Number: 0510104-30-10 Diameter: 0.500 Height: 0.250 Durometer: 30 Load Rating: 0.2 - 0.5 lbs
Part Number: 0510104-50-10 Diameter: 0.500 Height: 0.250 Durometer: 50 Load Rating: 0.3 - 0.7 lbs
Part Number: 0510104-70-10 Diameter: 0.500 Height: 0.250 Durometer: 70 Load Rating: 0.5 - 1.2 lbs
Part Number: 0510114-30-10 Diameter: 0.750 Height: 0.375 Durometer: 30 Load Rating: 0.5 - 0.9 lbs
Part Number: 0510114-50-10 Diameter: 0.750 Height: 0.375 Durometer: 50 Load Rating: 1 - 1.8 lbs
Part Number: 0510114-70-10 Diameter: 0.750 Height: 0.375 Durometer: 70 Load Rating: 1.8 - 3.6 lbs
Part Number: 0510117-30-10 Diameter: 1.000 Height: 0.500 Durometer: 30 Load Rating: 1 - 2 lbs
Part Number: 0510117-50-10 Diameter: 1.000 Height: 0.500 Durometer: 50 Load Rating: 2 - 4 lbs
Part Number: 0510117-70-10 Diameter: 1.000 Height: 0.500 Durometer: 70 Load Rating: 4 - 8 lbs
Part Number: 0510124-30-10 Diameter: 1.250 Height: 0.625 Durometer: 30 Load Rating: 2 - 4 lbs
Part Number: 0510124-50-10 Diameter: 1.250 Height: 0.625 Durometer: 50 Load Rating: 5 - 10 lbs
Part Number: 0510124-70-10 Diameter: 1.250 Height: 0.625 Durometer: 70 Load Rating: 15 - 22 lbs
Part Number: 0510134-30-10 Diameter: 1.500 Height: 0.750 Durometer: 30 Load Rating: 4 - 7 lbs
Part Number: 0510134-50-10 Diameter: 1.500 Height: 0.750 Durometer: 50 Load Rating: 7 - 14 lbs
Part Number: 0510134-70-10 Diameter: 1.500 Height: 0.750 Durometer: 70 Load Rating: 14 - 30 lbs
Part Number: 0510137-30-10 Diameter: 1.750 Height: 0.875 Durometer: 30 Load Rating: 7 - 12 lbs
Part Number: 0510137-50-10 Diameter: 1.750 Height: 0.875 Durometer: 50 Load Rating: 12 - 19 lbs
Part Number: 0510137-70-10 Diameter: 1.750 Height: 0.875 Durometer: 70 Load Rating: 15 - 27 lbs
Part Number: 0510144-30-10 Diameter: 2.000 Height: 1.000 Durometer: 30 Load Rating: 11 - 16 lbs
Part Number: 0510144-50-10 Diameter: 2.000 Height: 1.000 Durometer: 50 Load Rating: 17 - 24 lbs
Part Number: 0510144-70-10 Diameter: 2.000 Height: 1.000 Durometer: 70 Load Rating: 25 - 38 lbs
Part Number: 0510164-30-10 Diameter: 2.250 Height: 1.125 Durometer: 30 Load Rating: 18 - 26 lbs
Part Number: 0510164-50-10 Diameter: 2.250 Height: 1.125 Durometer: 50 Load Rating: 31 - 42 lbs
Part Number: 0510164-70-10 Diameter: 2.250 Height: 1.125 Durometer: 70 Load Rating: 38 - 52 lbs
Part Number: 0510154-30-10 Diameter: 2.500 Height: 1.250 Durometer: 30 Load Rating: 25 - 35 lbs
Part Number: 0510154-50-10 Diameter: 2.500 Height: 1.250 Durometer: 50 Load Rating: 45 - 60 lbs
Part Number: 0510154-70-10 Diameter: 2.500 Height: 1.250 Durometer: 70 Load Rating: 60 - 80 lbs
