Isolation Hemispheres With PSA

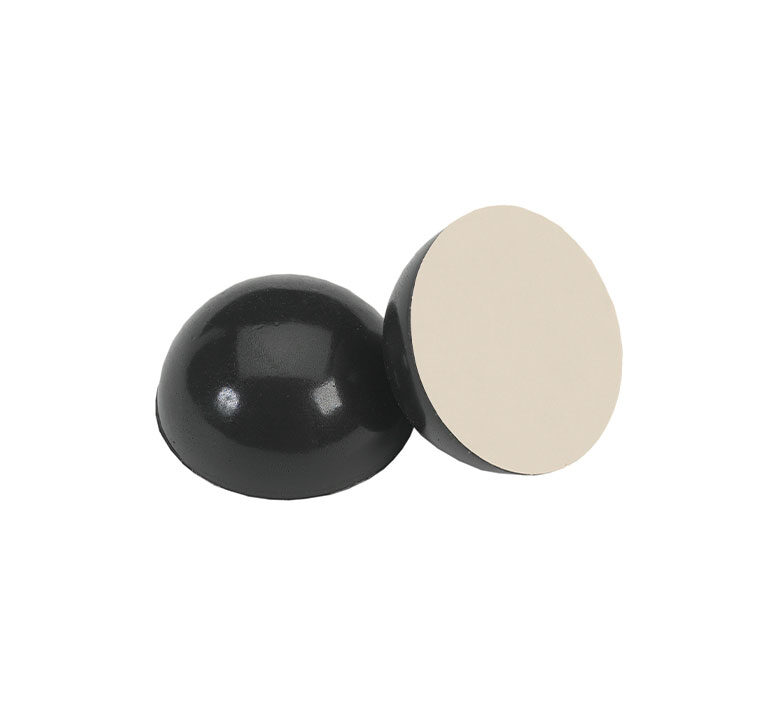

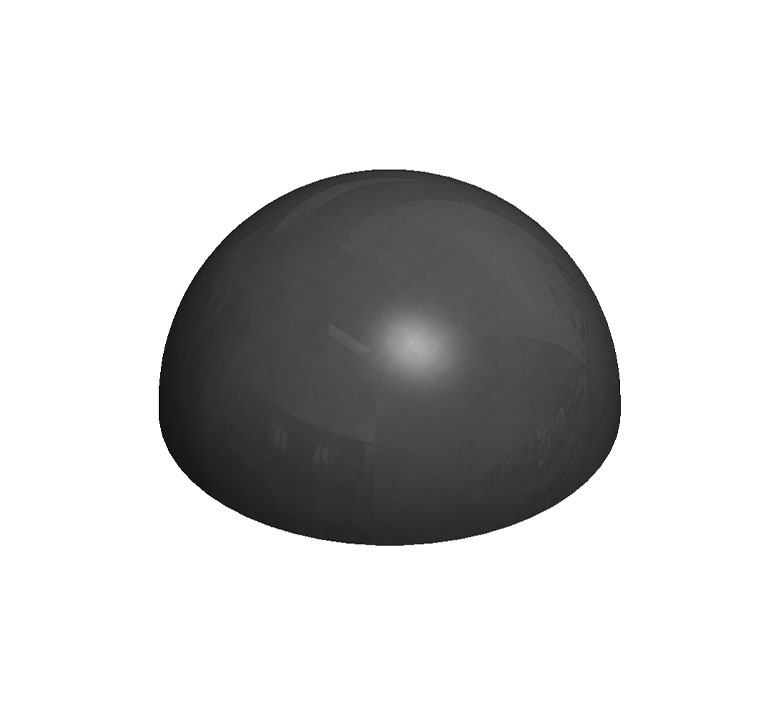

Sorbothane® Hemisphere mounts with Pressure Sensitive Adhesive (PSA) provide a quick, cost-effective method of isolating vibration. Place the hemispheres under the unit to be isolated. Expect a 20 to 30% deflection when statically loaded. Under loading will result in poor isolation.
Product PDF CAD Files-
Typical applications
- Audio Equipment
- Computer Hardware
- Electronic Devices
- Lab Equipment
- Small Machinery
- Video Components
-
More details
Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and the amount of adhesive-to-surface contact, combines to develop superior bonding strength.
| Part Number | Diameter | Height | Durometer +/-5 | Load Rating |
|---|---|---|---|---|
| 0510026-30-10 | 0.250 | 0.125 | 30 | 0.034 - 0.068 lbs |
| 0510026-50-10 | 0.250 | 0.125 | 50 | 0.054 - 0.124 lbs |
| 0510026-70-10 | 0.250 | 0.125 | 70 | 0.166 - 0.356 lbs |
| 0510101-30-10 | 0.500 | 0.250 | 30 | 0.2 - 0.5 lbs |
| 0510101-50-10 | 0.500 | 0.250 | 50 | 0.3 - 0.7 lbs |
| 0510101-70-10 | 0.500 | 0.250 | 70 | 0.5 - 1.2 lbs |
| 0510111-30-10 | 0.750 | 0.375 | 30 | 0.5 - 0.9 lbs |
| 0510111-50-10 | 0.750 | 0.375 | 50 | 1 - 1.8 lbs |
| 0510111-70-10 | 0.750 | 0.375 | 70 | 1.8 - 3.6 lbs |
| 0510116-30-10 | 1.000 | 0.500 | 30 | 1 - 2 lbs |
| 0510116-50-10 | 1.000 | 0.500 | 50 | 2 - 4 lbs |
| 0510116-70-10 | 1.000 | 0.500 | 70 | 4 - 8 lbs |
| 0510121-30-10 | 1.250 | 0.625 | 30 | 2 - 4 lbs |
| 0510121-50-10 | 1.250 | 0.625 | 50 | 5 - 10 lbs |
| 0510121-70-10 | 1.250 | 0.625 | 70 | 15 - 22 lbs |
| 0510131-30-10 | 1.500 | 0.750 | 30 | 4 - 7 lbs |
| 0510131-50-10 | 1.500 | 0.750 | 50 | 7 - 14 lbs |
| 0510131-70-10 | 1.500 | 0.750 | 70 | 14 - 30 lbs |
| 0510136-30-10 | 1.750 | 0.875 | 30 | 7 - 12 lbs |
| 0510136-50-10 | 1.750 | 0.875 | 50 | 12 - 19 lbs |
| 0510136-70-10 | 1.750 | 0.875 | 70 | 15 - 27 lbs |
| 0510141-30-10 | 2.000 | 1.000 | 30 | 11 - 16 lbs |
| 0510141-50-10 | 2.000 | 1.000 | 50 | 17 - 24 lbs |
| 0510141-70-10 | 2.000 | 1.000 | 70 | 25 - 38 lbs |
| 0510161-30-10 | 2.250 | 1.125 | 30 | 18 - 26 lbs |
| 0510161-50-10 | 2.250 | 1.125 | 50 | 31 - 42 lbs |
| 0510161-70-10 | 2.250 | 1.125 | 70 | 38 - 52 lbs |
| 0510151-30-10 | 2.500 | 1.250 | 30 | 25 - 35 lbs |
| 0510151-50-10 | 2.500 | 1.250 | 50 | 45 - 60 lbs |
| 0510151-70-10 | 2.500 | 1.250 | 70 | 60 - 80 lbs |
