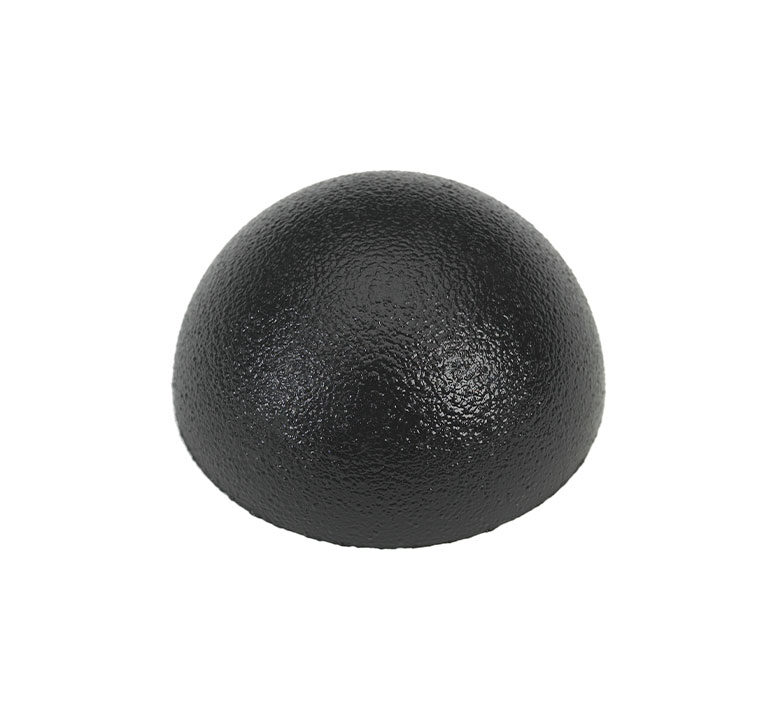

Black Sorbothane Hemisphere
Black Sorbothane Hemisphere

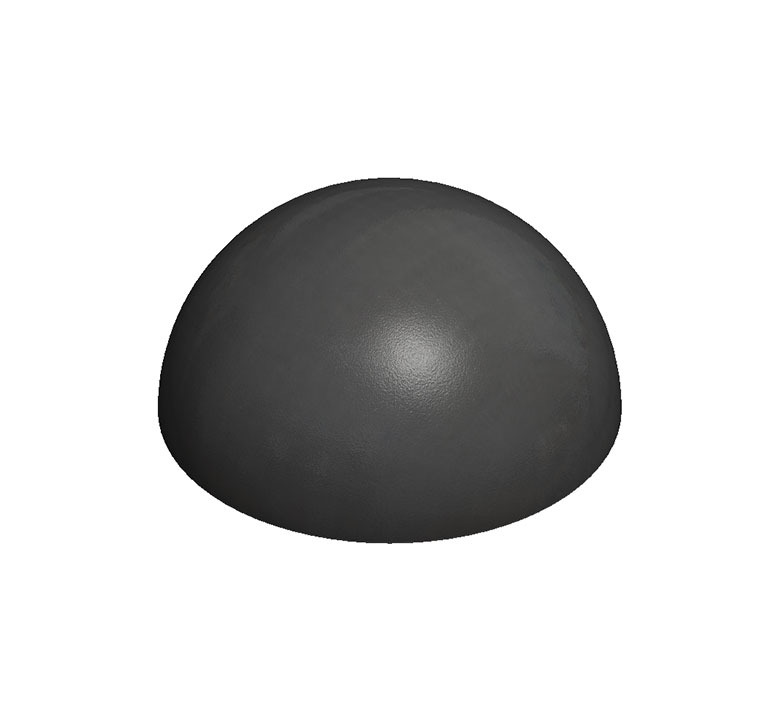

Isolation Hemispheres

Sorbothane® Hemisphere mounts without PSA provide a quick, cost-effective method of isolating vibration. Place the hemispheres under the unit to be isolated. Expect a 20 to 30% deflection when statically loaded. Under loading will result in poor isolation. All sizes are available with Pressure Sensitive Adhesive (PSA).

Product PDF NEW: CAD Catalog
  • Typical applications
    • Audio Equipment
    • Computer Hardware
    • Electronic Devices
    • Lab Equipment
    • Small Machinery
    • Video Components
Part Number Diameter Height Durometer +/-5 Load Rating
Part Number: 0510100-30-10 Diameter: 0.500 Height: 0.250 Durometer +/-5: 30 Load Rating: 0.2 - 0.5 lbs
Part Number: 0510100-50-10 Diameter: 0.500 Height: 0.250 Durometer +/-5: 50 Load Rating: 0.3 - 0.7 lbs
Part Number: 0510100-70-10 Diameter: 0.500 Height: 0.250 Durometer +/-5: 70 Load Rating: 0.5 - 1.2 lbs
Part Number: 0510110-30-10 Diameter: 0.750 Height: 0.380 Durometer +/-5: 30 Load Rating: 0.5 - 0.9 lbs
Part Number: 0510110-50-10 Diameter: 0.750 Height: 0.380 Durometer +/-5: 50 Load Rating: 1 - 1.8 lbs
Part Number: 0510110-70-10 Diameter: 0.750 Height: 0.380 Durometer +/-5: 70 Load Rating: 1.8 - 3.6 lbs
Part Number: 0510115-30-10 Diameter: 1.000 Height: 0.500 Durometer +/-5: 30 Load Rating: 1 - 2 lbs
Part Number: 0510115-50-10 Diameter: 1.000 Height: 0.500 Durometer +/-5: 50 Load Rating: 2 - 4 lbs
Part Number: 0510115-70-10 Diameter: 1.000 Height: 0.500 Durometer +/-5: 70 Load Rating: 4 - 8 lbs
Part Number: 0510120-30-10 Diameter: 1.250 Height: 0.625 Durometer +/-5: 30 Load Rating: 2 - 4 lbs
Part Number: 0510120-50-10 Diameter: 1.250 Height: 0.625 Durometer +/-5: 50 Load Rating: 5 - 10 lbs
Part Number: 0510120-70-10 Diameter: 1.250 Height: 0.625 Durometer +/-5: 70 Load Rating: 15 - 22 lbs
Part Number: 0510130-30-10 Diameter: 1.500 Height: 0.750 Durometer +/-5: 30 Load Rating: 4 - 7 lbs
Part Number: 0510130-50-10 Diameter: 1.500 Height: 0.750 Durometer +/-5: 50 Load Rating: 7 - 14 lbs
Part Number: 0510130-70-10 Diameter: 1.500 Height: 0.750 Durometer +/-5: 70 Load Rating: 14 - 30 lbs
Part Number: 0510135-30-10 Diameter: 1.750 Height: 0.875 Durometer +/-5: 30 Load Rating: 7 - 12 lbs
Part Number: 0510135-50-10 Diameter: 1.750 Height: 0.875 Durometer +/-5: 50 Load Rating: 12 - 19 lbs
Part Number: 0510135-70-10 Diameter: 1.750 Height: 0.875 Durometer +/-5: 70 Load Rating: 15 - 27 lbs
Part Number: 0510140-30-10 Diameter: 2.000 Height: 1.000 Durometer +/-5: 30 Load Rating: 11 - 16 lbs
Part Number: 0510140-50-10 Diameter: 2.000 Height: 1.000 Durometer +/-5: 50 Load Rating: 17 - 24 lbs
Part Number: 0510140-70-10 Diameter: 2.000 Height: 1.000 Durometer +/-5: 70 Load Rating: 25 - 38 lbs
Part Number: 0510160-30-10 Diameter: 2.250 Height: 1.125 Durometer +/-5: 30 Load Rating: 18 - 26 lbs
Part Number: 0510160-50-10 Diameter: 2.250 Height: 1.125 Durometer +/-5: 50 Load Rating: 31 - 42 lbs
Part Number: 0510160-70-10 Diameter: 2.250 Height: 1.125 Durometer +/-5: 70 Load Rating: 38 - 52 lbs
Part Number: 0510150-30-10 Diameter: 2.500 Height: 1.250 Durometer +/-5: 30 Load Rating: 25 - 35 lbs
Part Number: 0510150-50-10 Diameter: 2.500 Height: 1.250 Durometer +/-5: 50 Load Rating: 45 - 60 lbs
Part Number: 0510150-70-10 Diameter: 2.500 Height: 1.250 Durometer +/-5: 70 Load Rating: 60 - 80 lbs
