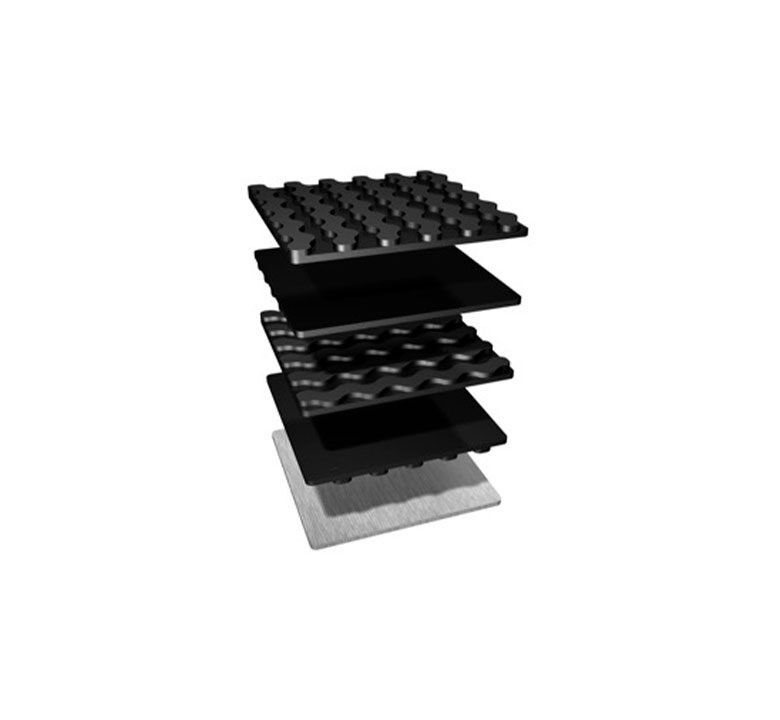

Four black Sorbothane Interlocking Shock Absorbing System squares stacked with space in between

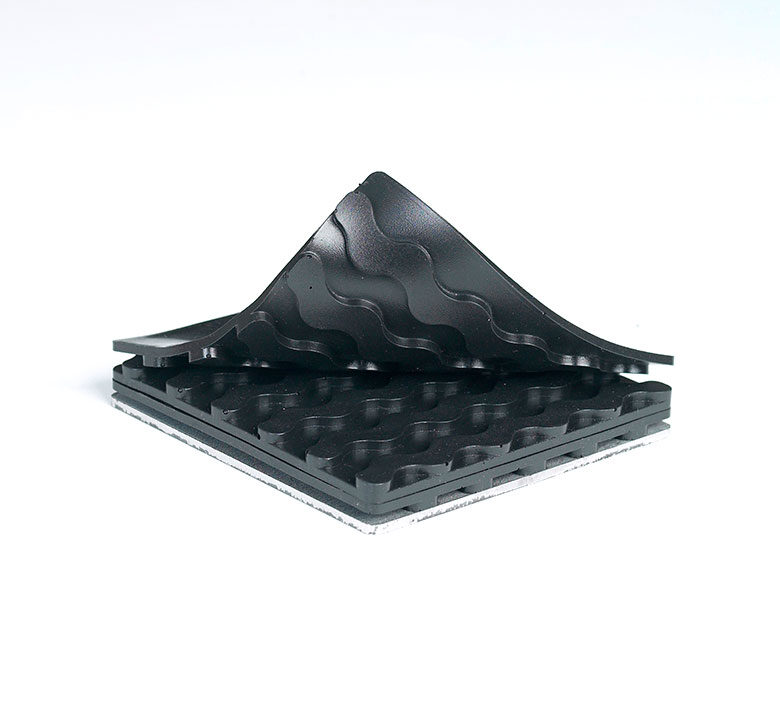

Sorbothane Interlocking Pads

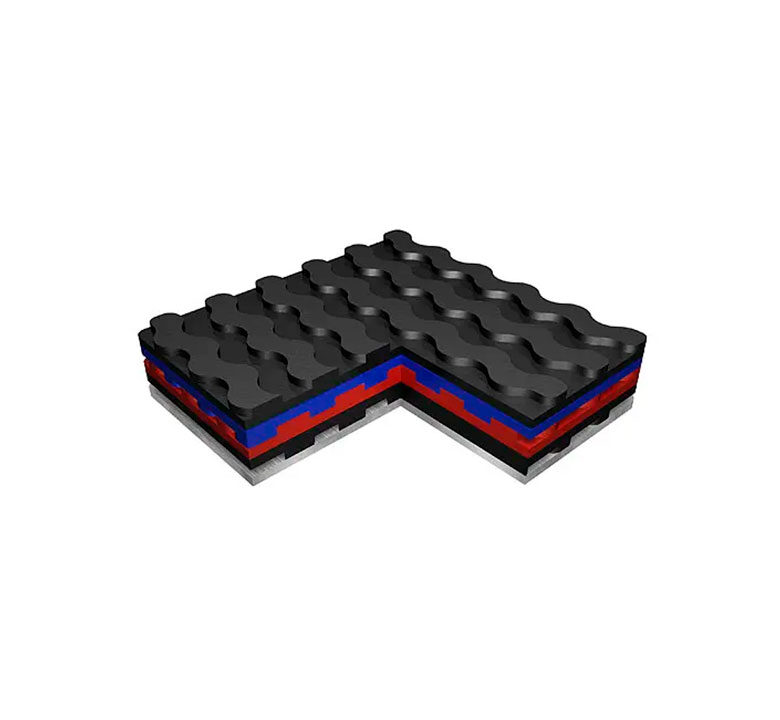

Black, blue, red, and grey layered Sorbothane Interlocking Shock Absorbing System
Four black Sorbothane Interlocking Shock Absorbing System squares stacked with space in between
Sorbothane Interlocking Pads
Black, blue, red, and grey layered Sorbothane Interlocking Shock Absorbing System

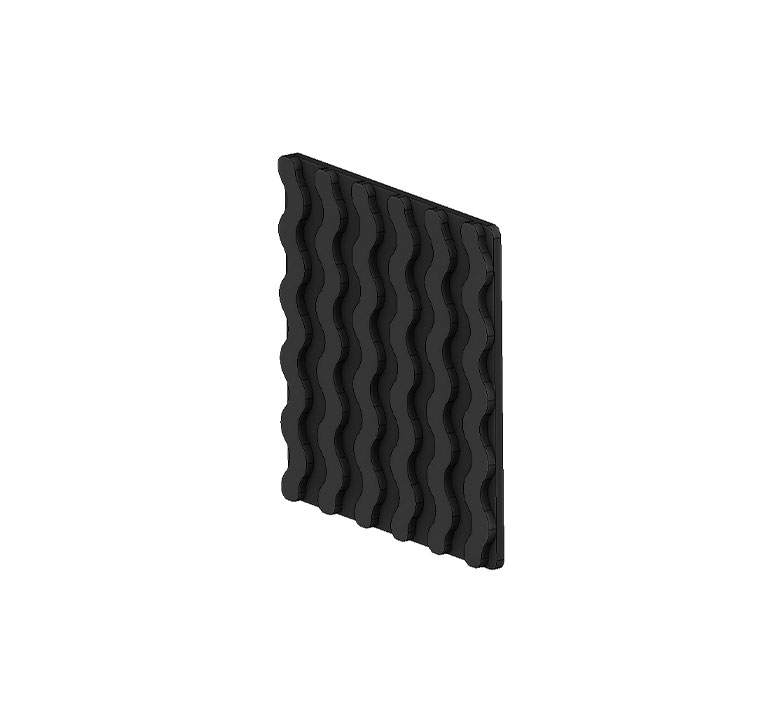

Isolation Pads Interlocking With Six Lines

Sorbothane® Isolation Pads interlocking with six lines can support a wide range of loads. Select the correct thickness, durometer and the number of pads required for the load.

Product PDF CAD Files
  • Typical applications
    • Audio Equipment
    • Computer
    • Electronic
    • Lab Equipment
    • Small Machinery
    • Video Equipment
  • More details
    Meticulously engineered 4” X 4” Sorbothane pads can be layered and “locked” together to build a specific shock attenuating and vibration isolating assembly. A steel baseplate provides column strength and maintains the correct shape factor. A steel top plate can also be utilized. Layers of interlocking Sorbothane pads are added - or removed - to establish the desired size and isolation parameters.
Part Number Dimensions Durometer
Part Number: 0510581-30-10 Dimensions: 0.200 x 4 x 4 Durometer: 30
Part Number: 0510581-50-10 Dimensions: 0.200 x 4 x 4 Durometer: 50
Part Number: 0510581-70-10 Dimensions: 0.200 x 4 x 4 Durometer: 70
