Isolation Pads With PSA

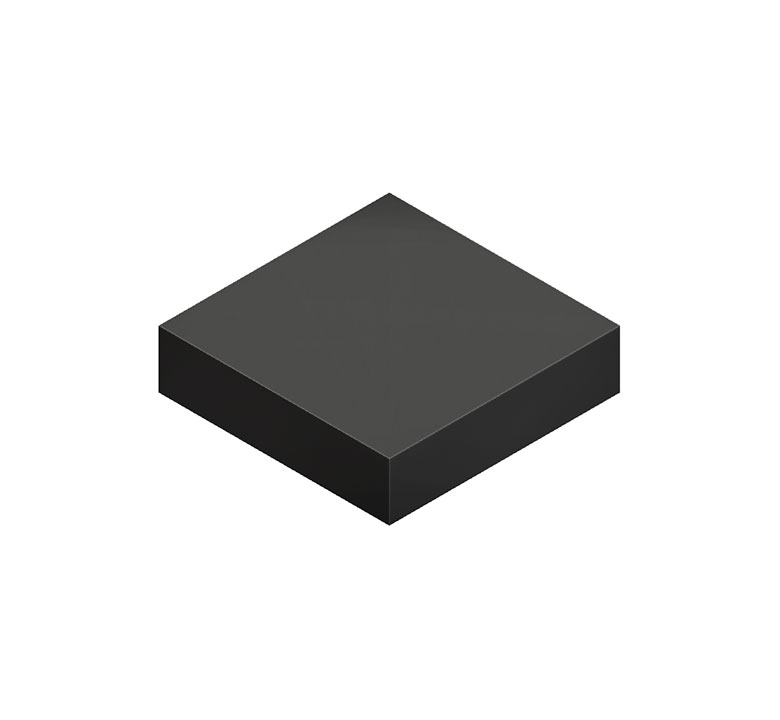

Square Sorbothane® Isolation Pads with Pressure Sensitive Adhesive (PSA) can support a wide range of loads. Select the correct thickness, durometer and the number of pads required for the load.
Product PDF CAD Files-
Typical applications
- Audio Equipment
- Computer
- Electronic
- Lab Equipment
- Small Machinery
- Video Equipment
-
More details
Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and the amount of adhesive-to-surface contact, combines to develop superior bonding strength.
| Part Number | Dimensions | Durometer +/-5 | Load Rating |
|---|---|---|---|
| 0510611-30-10 | 0.100 x 0.5 x 0.5 | 30 | 1 - 2 lbs |
| 0510611-50-10 | 0.100 x 0.5 x 0.5 | 50 | 3 - 6 lbs |
| 0510611-70-10 | 0.100 x 0.5 x 0.5 | 70 | 10 - 25 lbs |
| 0510613-30-10 | 0.125 x 0.5 x 0.5 | 30 | 0.7 - 1.5 lbs |
| 0510613-50-10 | 0.125 x 0.5 x 0.5 | 50 | 2 - 4.7 lbs |
| 0510613-70-10 | 0.125 x 0.5 x 0.5 | 70 | 5 - 14 lbs |
| 0510619-30-10 | 0.188 x 0.5 x 0.5 | 30 | 0.5 - 1 lbs |
| 0510619-50-10 | 0.188 x 0.5 x 0.5 | 50 | 1.5 - 2.5 lbs |
| 0510619-70-10 | 0.188 x 0.5 x 0.5 | 70 | 5 - 14 lbs |
| 0510626-30-10 | 0.250 x 0.5 x 0.5 | 30 | 0.4 - 0.8 lbs |
| 0510626-50-10 | 0.250 x 0.5 x 0.5 | 50 | 1 - 2 lbs |
| 0510626-70-10 | 0.250 x 0.5 x 0.5 | 70 | 4 - 10 lbs |
| 0510713-30-10 | 0.125 x 0.75 x 0.75 | 30 | 3 - 6 lbs |
| 0510713-50-10 | 0.125 x 0.75 x 0.75 | 50 | 9 - 19 lbs |
| 0510713-70-10 | 0.125 x 0.75 x 0.75 | 70 | 37 - 90 lbs |
| 0510719-30-10 | 0.188 x 0.75 x 0.75 | 30 | 1.5 - 3.5 lbs |
| 0510719-50-10 | 0.188 x 0.75 x 0.75 | 50 | 5 - 10 lbs |
| 0510719-70-10 | 0.188 x 0.75 x 0.75 | 70 | 20 - 50 lbs |
| 0510726-30-10 | 0.250 x 0.75 x 0.75 | 30 | 1 - 2.5 lbs |
| 0510726-50-10 | 0.250 x 0.75 x 0.75 | 50 | 3.5 - 7.5 lbs |
| 0510726-70-10 | 0.250 x 0.75 x 0.75 | 70 | 15 - 35 lbs |
| 0511013-30-10 | 0.125 x 1 x 1 | 30 | 9 - 18 lbs |
| 0511013-50-10 | 0.125 x 1 x 1 | 50 | 25 - 55 lbs |
| 0511013-70-10 | 0.125 x 1 x 1 | 70 | 100 - 270 lbs |
| 0511019-30-10 | 0.188 x 1 x 1 | 30 | 4.5 - 9.5 lbs |
| 0511019-50-10 | 0.188 x 1 x 1 | 50 | 13 - 28 lbs |
| 0511019-70-10 | 0.188 x 1 x 1 | 70 | 55 - 135 lbs |
| 0511026-30-10 | 0.250 x 1 x 1 | 30 | 3 - 6 lbs |
| 0511026-50-10 | 0.250 x 1 x 1 | 50 | 9 - 18 lbs |
| 0511026-70-10 | 0.250 x 1 x 1 | 70 | 36 - 90 lbs |
| 0511038-30-10 | 0.375 x 1 x 1 | 30 | 1.7 - 4 lbs |
| 0511038-50-10 | 0.375 x 1 x 1 | 50 | 5 - 12 lbs |
| 0511038-70-10 | 0.375 x 1 x 1 | 70 | 22.25 - 56.5 lbs |
