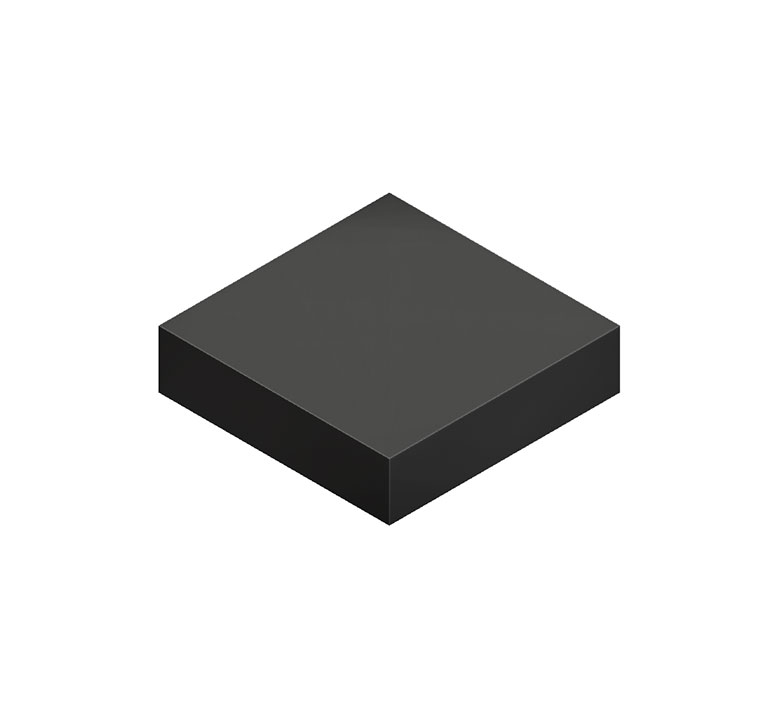

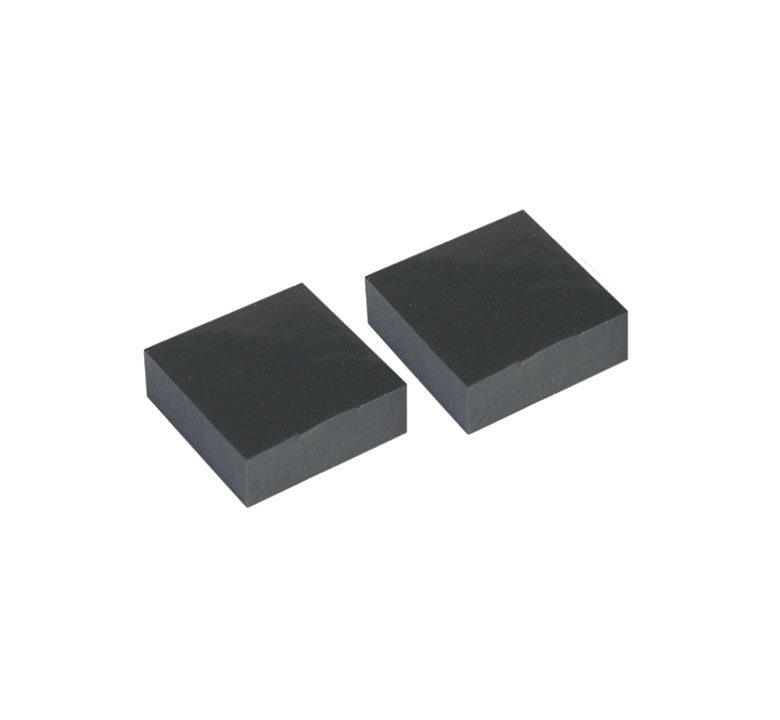

Isolation Pads Square
Square Sorbothane® Isolation Pads can support a wide range of loads. Select the correct thickness, durometer and the number of pads required for the load.
Product PDF CAD Files-
Typical applications
- Audio Equipment
- Computer
- Electronic
- Lab Equipment
- Small Machinery
- Video Equipment
| Part Number | Dimensions | Durometer +/-5 | Load Rating |
|---|---|---|---|
| 0510610-30-10 | 0.100 x 0.5 x 0.5 | 30 | 1 - 2 lbs |
| 0510610-50-10 | 0.100 x 0.5 x 0.5 | 50 | 3 - 6 lbs |
| 0510610-70-10 | 0.100 x 0.5 x 0.5 | 70 | 10 - 25 lbs |
| 0510612-30-10 | 0.125 x 0.5 x 0.5 | 30 | 0.7 - 1.5 lbs |
| 0510612-50-10 | 0.125 x 0.5 x 0.5 | 50 | 2 - 4.7 lbs |
| 0510612-70-10 | 0.125 x 0.5 x 0.5 | 70 | 5 - 14 lbs |
| 0510618-30-10 | 0.188 x 0.5 x 0.5 | 30 | 0.5 - 1 lbs |
| 0510618-50-10 | 0.188 x 0.5 x 0.5 | 50 | 1.5 - 2.5 lbs |
| 0510618-70-10 | 0.188 x 0.5 x 0.5 | 70 | 5 - 14 lbs |
| 0510625-30-10 | 0.250 x 0.5 x 0.5 | 30 | 0.4 - 0.8 lbs |
| 0510625-50-10 | 0.250 x 0.5 x 0.5 | 50 | 1 - 2 lbs |
| 0510625-70-10 | 0.250 x 0.5 x 0.5 | 70 | 4 - 10 lbs |
| 0510712-30-10 | 0.125 x 0.75 x 0.75 | 30 | 3 - 6 lbs |
| 0510712-50-10 | 0.125 x 0.75 x 0.75 | 50 | 9 - 19 lbs |
| 0510712-70-10 | 0.125 x 0.75 x 0.75 | 70 | 37 - 90 lbs |
| 0510718-30-10 | 0.188 x 0.75 x 0.75 | 30 | 1.5 - 3.5 lbs |
| 0510718-50-10 | 0.188 x 0.75 x 0.75 | 50 | 5 - 10 lbs |
| 0510718-70-10 | 0.188 x 0.75 x 0.75 | 70 | 20 - 50 lbs |
| 0510725-30-10 | 0.250 x 0.75 x 0.75 | 30 | 1 - 2.5 lbs |
| 0510725-50-10 | 0.250 x 0.75 x 0.75 | 50 | 3.5 - 7.5 lbs |
| 0510725-70-10 | 0.250 x 0.75 x 0.75 | 70 | 15 - 35 lbs |
| 0511012-30-10 | 0.125 x 1.0 x 1.0 | 30 | 9 - 18 lbs |
| 0511012-50-10 | 0.125 x 1.0 x 1.0 | 50 | 25 - 55 lbs |
| 0511012-70-10 | 0.125 x 1.0 x 1.0 | 70 | 100 - 270 lbs |
| 0511018-30-10 | 0.188 x 1.0 x 1.0 | 30 | 4.5 - 9.5 lbs |
| 0511018-50-10 | 0.188 x 1.0 x 1.0 | 50 | 13 - 28 lbs |
| 0511018-70-10 | 0.188 x 1.0 x 1.0 | 70 | 55 - 135 lbs |
| 0511025-30-10 | 0.250 x 1.0 x 1.0 | 30 | 3 - 6 lbs |
| 0511025-50-10 | 0.250 x 1.0 x 1.0 | 50 | 9 - 18 lbs |
| 0511025-70-10 | 0.250 x 1.0 x 1.0 | 70 | 36 - 90 lbs |
| 0511037-30-10 | 0.375 x 1.0 x 1.0 | 30 | 1.7 - 4 lbs |
| 0511037-50-10 | 0.375 x 1.0 x 1.0 | 50 | 5 - 12 lbs |
| 0511037-70-10 | 0.375 x 1.0 x 1.0 | 70 | 22.25 - 56.5 lbs |
| 0511525-30-10 | 0.250 x 1.5 x 1.5 | 30 | 11 - 26 lbs |
| 0511525-50-10 | 0.250 x 1.5 x 1.5 | 50 | 33.4 - 78 lbs |
| 0511525-70-10 | 0.250 x 1.5 x 1.5 | 70 | 140 - 371 lbs |
| 0511537-30-10 | 0.375 x 1.5 x 1.5 | 30 | 6 - 14 lbs |
| 0511537-50-10 | 0.375 x 1.5 x 1.5 | 50 | 18.25 - 42.5 lbs |
| 0511537-70-10 | 0.375 x 1.5 x 1.5 | 70 | 79.5 - 202.5 lbs |
| 0511550-30-10 | 0.500 x 1.5 x 1.5 | 30 | 4.3 - 10 lbs |
| 0511550-50-10 | 0.500 x 1.5 x 1.5 | 50 | 13 - 30 lbs |
| 0511550-70-10 | 0.500 x 1.5 x 1.5 | 70 | 56.5 - 143 lbs |
