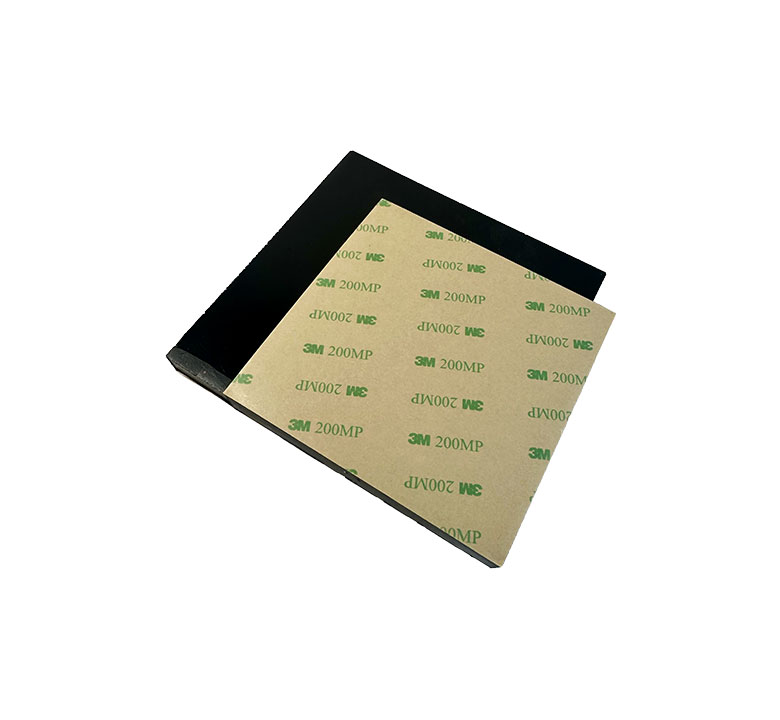

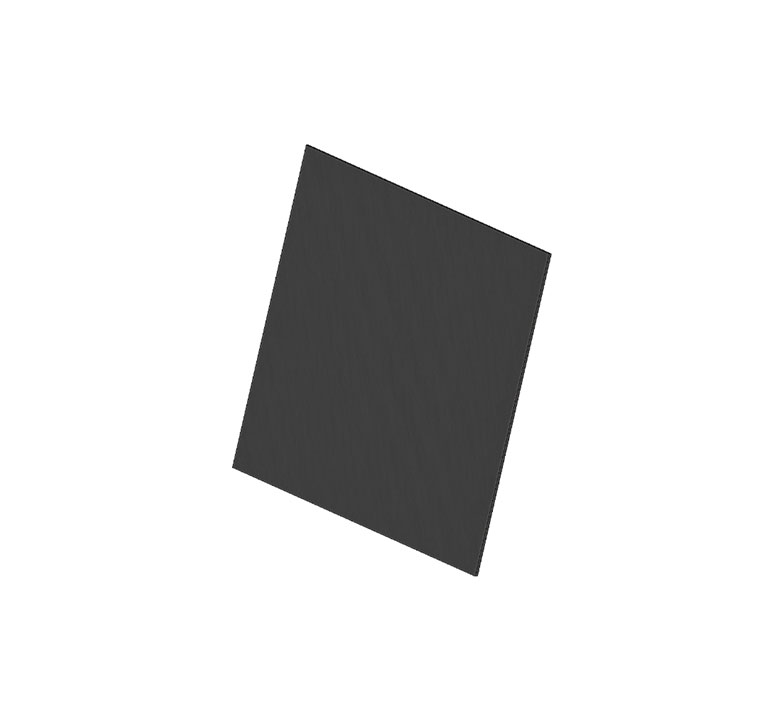

Sheet Stock 12" X 12" With PSA
Sorbothane® Sheets 12" X 12" with PSA are available in select thicknesses and durometers. The aggressive pressure sensitive adhesive features a thin polyester film for dimensional stability and improved handling. The adhesive demonstrates exceptional temperature and chemical resistance. Firm application pressure and the amount of adhesive-to-surface contact combine to develop a strong bond.
Product PDF CAD Files-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
-
More details
Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and The amount of adhesive-to-surface contact, combines to develop superior bonding strength.
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0212013-30-10 | 0.125 x 12 x 12 | 30 | ±0.025 |
| 0212013-40-10 | 0.125 x 12 x 12 | 40 | ±0.025 |
| 0212013-50-10 | 0.125 x 12 x 12 | 50 | ±0.025 |
| 0212013-60-10 | 0.125 x 12 x 12 | 60 | ±0.025 |
| 0212013-70-10 | 0.125 x 12 x 12 | 70 | ±0.025 |
| 0212026-30-10 | 0.250 x 12 x 12 | 30 | ±0.025 |
| 0212026-40-10 | 0.250 x 12 x 12 | 40 | ±0.025 |
| 0212026-50-10 | 0.250 x 12 x 12 | 50 | ±0.025 |
| 0212026-60-10 | 0.250 x 12 x 12 | 60 | ±0.025 |
| 0212026-70-10 | 0.250 x 12 x 12 | 70 | ±0.025 |
| 0212051-30-10 | 0.500 x 12 x 12 | 30 | ±0.035 |
| 0212051-40-10 | 0.500 x 12 x 12 | 40 | ±0.035 |
| 0212051-50-10 | 0.500 x 12 x 12 | 50 | ±0.035 |
| 0212051-60-10 | 0.500 x 12 x 12 | 60 | ±0.035 |
| 0212051-70-10 | 0.500 x 12 x 12 | 70 | ±0.035 |
| 0212101-30-10 | 1.000 x 12 x 12 | 30 | ±0.060 |
| 0212101-40-10 | 1.000 x 12 x 12 | 40 | ±0.060 |
| 0212101-50-10 | 1.000 x 12 x 12 | 50 | ±0.060 |
| 0212101-60-10 | 1.000 x 12 x 12 | 60 | ±0.060 |
| 0212101-70-10 | 1.000 x 12 x 12 | 70 | ±0.060 |
