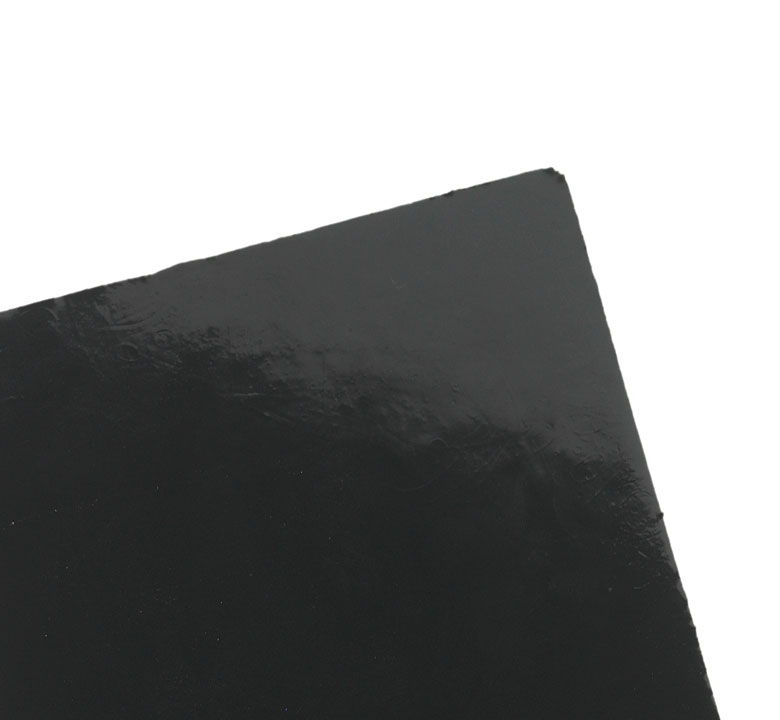

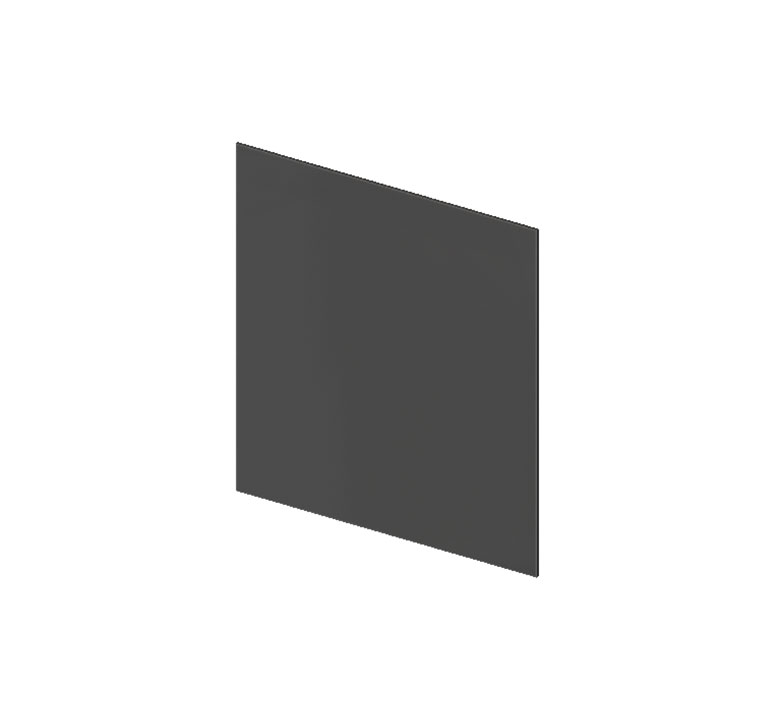

Sheet Stock 13" X 15"
Sorbothane® Sheet Stock 13" X 15" is available in select thickness and durometer options. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut into custom shapes and sizes. Sorbothane® Sheets are a popular solution for gaskets. Please contact the factory with any questions.
Product PDF CAD Models-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0215012-40-10 | 0.125 x 13 x 15 | 40 | ±0.020 |
| 0215012-50-10 | 0.125 x 13 x 15 | 50 | ±0.020 |
| 0215012-60-10 | 0.125 x 13 x 15 | 60 | ±0.020 |
| 0215012-70-10 | 0.125 x 13 x 15 | 70 | ±0.020 |
| 0215018-40-10 | 0.188 x 13 x 15 | 40 | ±0.025 |
| 0215018-50-10 | 0.188 x 13 x 15 | 50 | ±0.025 |
| 0215018-60-10 | 0.188 x 13 x 15 | 60 | ±0.025 |
| 0215018-70-10 | 0.188 x 13 x 15 | 70 | ±0.025 |
| 0215025-30-10 | 0.250 x 13 x 15 | 30 | ±0.030 |
| 0215025-40-10 | 0.250 x 13 x 15 | 40 | ±0.030 |
| 0215025-50-10 | 0.250 x 13 x 15 | 50 | ±0.030 |
| 0215025-60-10 | 0.250 x 13 x 15 | 60 | ±0.030 |
| 0215025-70-10 | 0.250 x 13 x 15 | 70 | ±0.030 |
