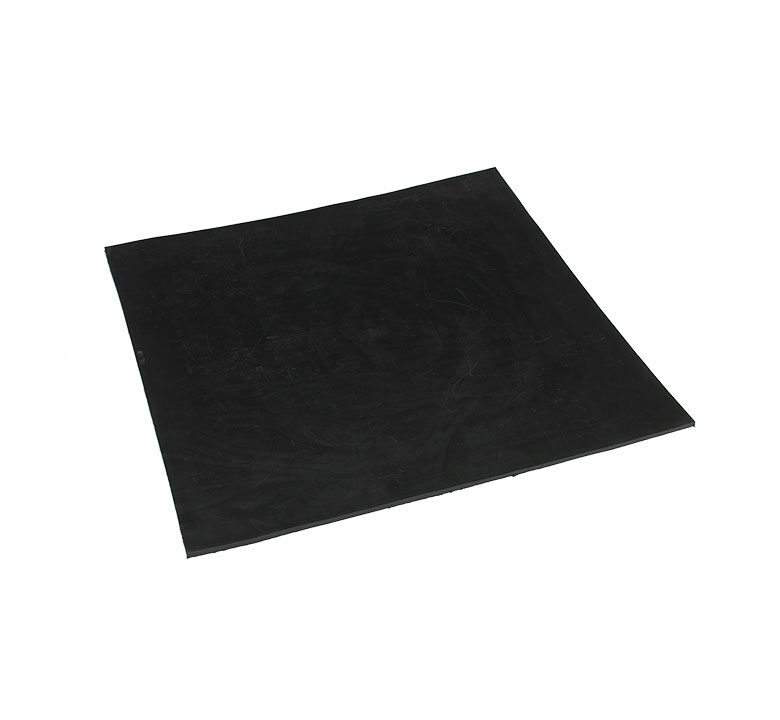

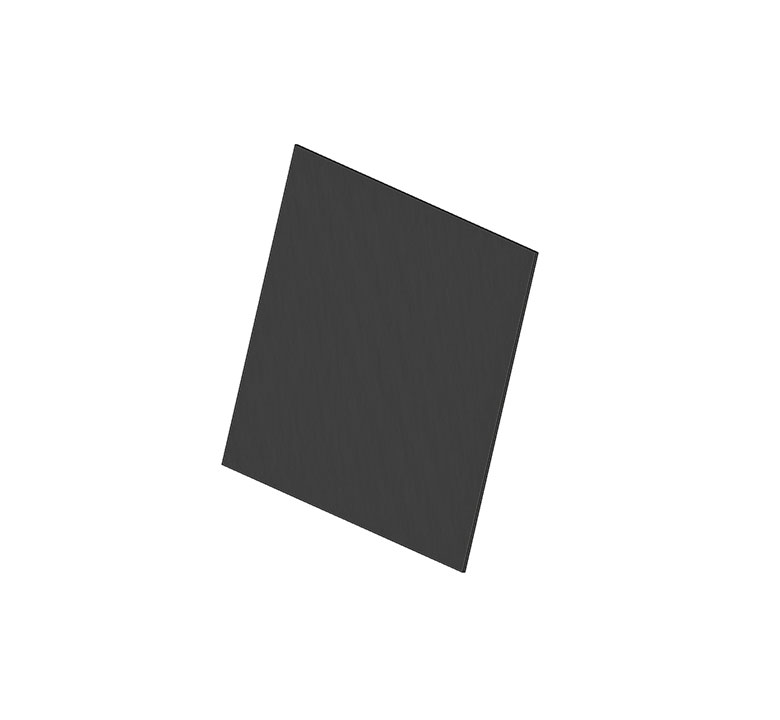

Sheet Stock 24" X 24"
Sorbothane® Sheets 24" X 24" are available in select thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF CAD Files-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer | Thickness Tolerance |
|---|---|---|---|
| 0224010-40-10 | 0.100 x 24 x 24 | 40 | ±0.015 |
| 0224010-50-10 | 0.100 x 24 x 24 | 50 | ±0.015 |
| 0224010-60-10 | 0.100 x 24 x 24 | 60 | ±0.015 |
| 0224010-70-10 | 0.100 x 24 x 24 | 70 | ±0.015 |
| 0224012-40-10 | 0.125 x 24 x 24 | 40 | ±0.025 |
| 0224012-50-10 | 0.125 x 24 x 24 | 50 | ±0.025 |
| 0224012-60-10 | 0.125 x 24 x 24 | 60 | ±0.025 |
| 0224012-70-10 | 0.125 x 24 x 24 | 70 | ±0.025 |
| 0224018-40-10 | 0.188 x 24 x 24 | 40 | ±0.030 |
| 0224018-50-10 | 0.188 x 24 x 24 | 50 | ±0.030 |
| 0224018-60-10 | 0.188 x 24 x 24 | 60 | ±0.030 |
| 0224018-70-10 | 0.188 x 24 x 24 | 70 | ±0.030 |
| 0224025-30-10 | 0.250 x 24 x 24 | 30 | ±0.040 |
| 0224025-40-10 | 0.250 x 24 x 24 | 40 | ±0.040 |
| 0224025-50-10 | 0.250 x 24 x 24 | 50 | ±0.040 |
| 0224025-60-10 | 0.250 x 24 x 24 | 60 | ±0.040 |
| 0224025-70-10 | 0.250 x 24 x 24 | 70 | ±0.040 |
| 0224037-30-10 | 0.375 x 24 x 24 | 30 | ±0.040 |
| 0224037-40-10 | 0.375 x 24 x 24 | 40 | ±0.040 |
| 0224037-50-10 | 0.375 x 24 x 24 | 50 | ±0.040 |
| 0224037-60-10 | 0.375 x 24 x 24 | 60 | ±0.040 |
| 0224037-70-10 | 0.375 x 24 x 24 | 70 | ±0.040 |
| 0224050-30-10 | 0.500 x 24 x 24 | 30 | ±0.045 |
| 0224050-40-10 | 0.500 x 24 x 24 | 40 | ±0.045 |
| 0224050-50-10 | 0.500 x 24 x 24 | 50 | ±0.045 |
| 0224050-60-10 | 0.500 x 24 x 24 | 60 | ±0.045 |
| 0224050-70-10 | 0.500 x 24 x 24 | 70 | ±0.045 |
| 0224062-30-10 | 0.625 x 24 x 24 | 30 | ±0.060 |
| 0224062-40-10 | 0.625 x 24 x 24 | 40 | ±0.060 |
| 0224062-50-10 | 0.625 x 24 x 24 | 50 | ±0.060 |
| 0224062-60-10 | 0.625 x 24 x 24 | 60 | ±0.060 |
| 0224062-70-10 | 0.625 x 24 x 24 | 70 | ±0.060 |
| 0224075-30-10 | 0.750 x 24 x 24 | 30 | ±0.060 |
| 0224075-40-10 | 0.750 x 24 x 24 | 40 | ±0.060 |
| 0224075-50-10 | 0.750 x 24 x 24 | 50 | ±0.060 |
| 0224075-60-10 | 0.750 x 24 x 24 | 60 | ±0.060 |
| 0224075-70-10 | 0.750 x 24 x 24 | 70 | ±0.060 |
| 0224100-30-10 | 1.000 x 24 x 24 | 30 | ±0.070 |
| 0224100-40-10 | 1.000 x 24 x 24 | 40 | ±0.070 |
| 0224100-50-10 | 1.000 x 24 x 24 | 50 | ±0.070 |
| 0224100-60-10 | 1.000 x 24 x 24 | 60 | ±0.070 |
| 0224100-70-10 | 1.000 x 24 x 24 | 70 | ±0.070 |
| 0224150-30-10 | 1.500 x 24 x 24 | 30 | ±0.075 |
| 0224150-40-10 | 1.500 x 24 x 24 | 40 | ±0.075 |
| 0224150-50-10 | 1.500 x 24 x 24 | 50 | ±0.075 |
| 0224150-60-10 | 1.500 x 24 x 24 | 60 | ±0.075 |
| 0224150-70-10 | 1.500 x 24 x 24 | 70 | ±0.075 |
