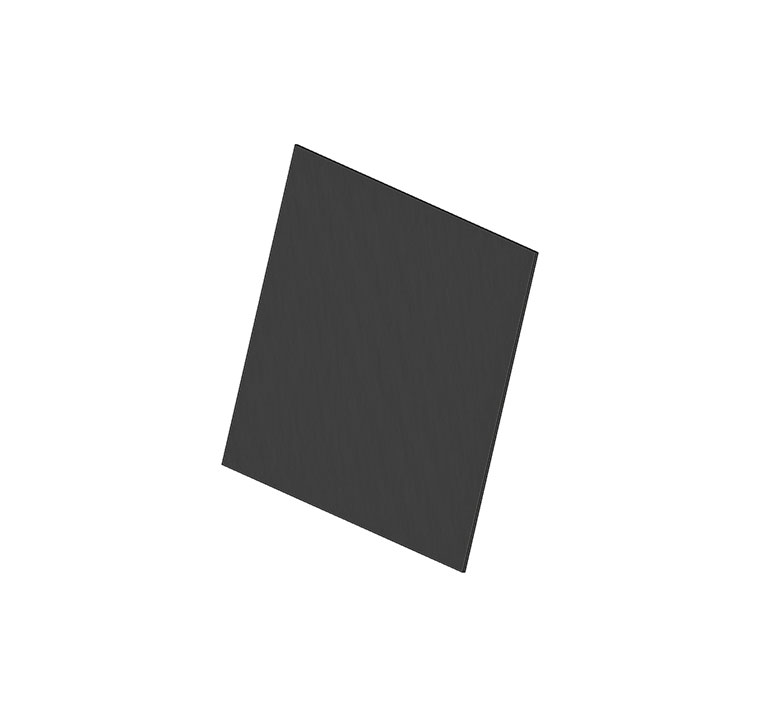

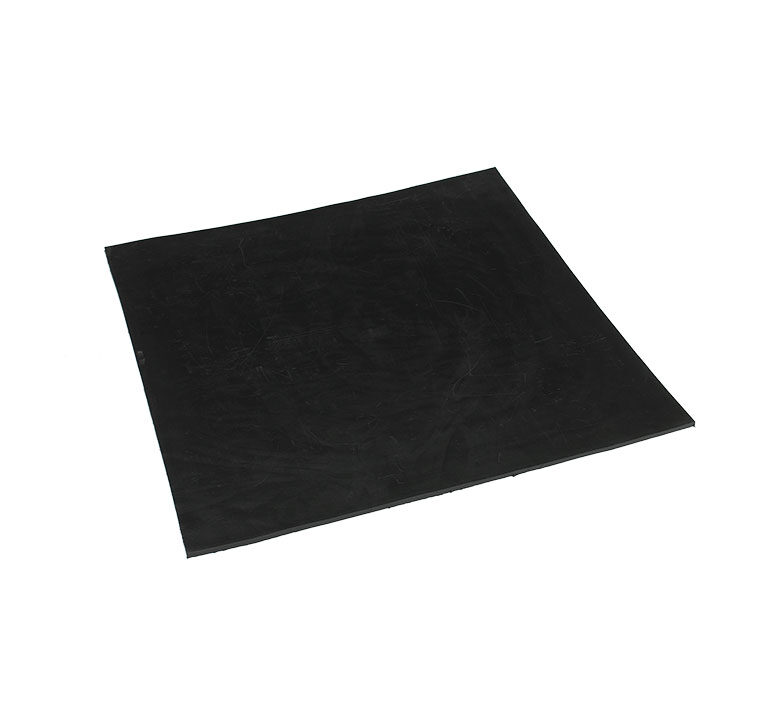

Sheet Stock 25" X 25"
Sorbothane® Sheets 25" X 25" are available in select thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0225012-40-10 | 0.125 x 25 x 25 | 40 | ±0.025 |
| 0225012-50-10 | 0.125 x 25 x 25 | 50 | ±0.025 |
| 0225012-60-10 | 0.125 x 25 x 25 | 60 | ±0.025 |
| 0225012-70-10 | 0.125 x 25 x 25 | 70 | ±0.025 |
| 0225018-40-10 | 0.188 x 25 x 25 | 40 | ±0.030 |
| 0225018-50-10 | 0.188 x 25 x 25 | 50 | ±0.030 |
| 0225018-60-10 | 0.188 x 25 x 25 | 60 | ±0.030 |
| 0225018-70-10 | 0.188 x 25 x 25 | 70 | ±0.030 |
| 0225025-30-10 | 0.250 x 25 x 25 | 30 | ±0.040 |
| 0225025-40-10 | 0.250 x 25 x 25 | 40 | ±0.040 |
| 0225025-50-10 | 0.250 x 25 x 25 | 50 | ±0.040 |
| 0225025-60-10 | 0.250 x 25 x 25 | 60 | ±0.040 |
| 0225025-70-10 | 0.250 x 25 x 25 | 70 | ±0.040 |
| 0225037-30-10 | 0.375 x 25 x 25 | 30 | ±0.040 |
| 0225037-40-10 | 0.375 x 25 x 25 | 40 | ±0.040 |
| 0225037-50-10 | 0.375 x 25 x 25 | 50 | ±0.040 |
| 0225037-60-10 | 0.375 x 25 x 25 | 60 | ±0.040 |
| 0225037-70-10 | 0.375 x 25 x 25 | 70 | ±0.040 |
| 0225050-30-10 | 0.500 x 25 x 25 | 30 | ±0.045 |
| 0225050-40-10 | 0.500 x 25 x 25 | 40 | ±0.045 |
| 0225050-50-10 | 0.500 x 25 x 25 | 50 | ±0.045 |
| 0225050-60-10 | 0.500 x 25 x 25 | 60 | ±0.045 |
| 0225050-70-10 | 0.500 x 25 x 25 | 70 | ±0.045 |
