Black Sorbothane Sheet Stock with PSA
Black Sorbothane Sheet Stock with PSA

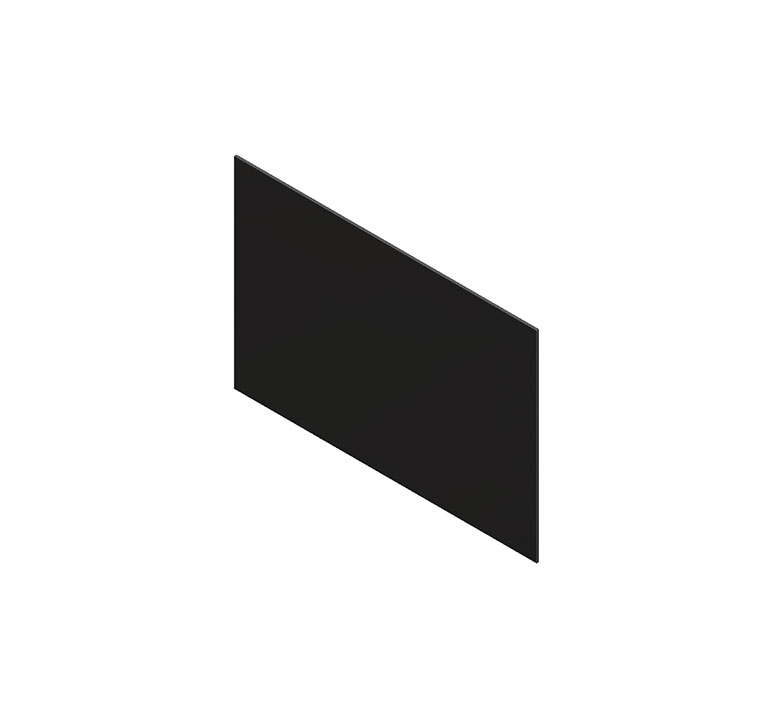

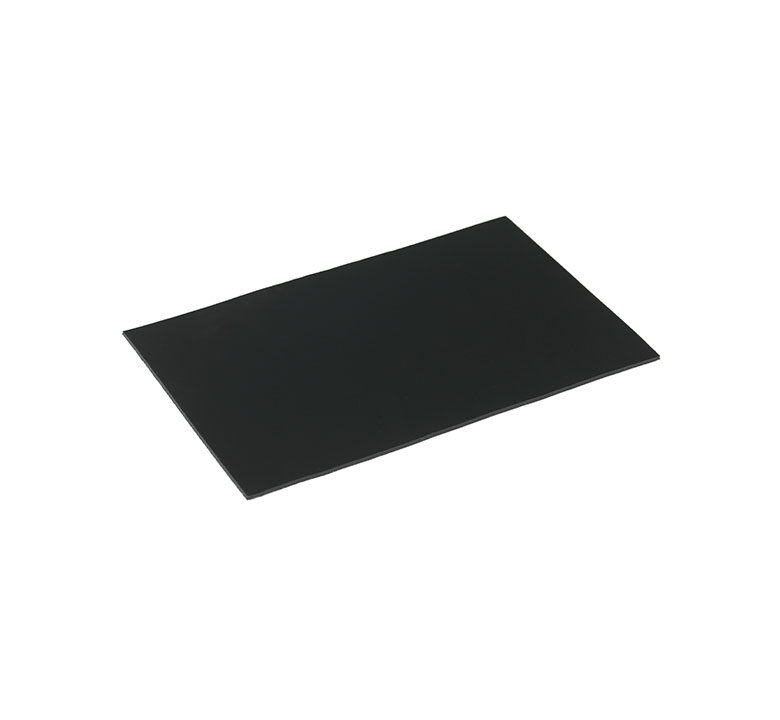

Sheet Stock 4" X 6" With PSA

Sorbothane® Sheets 4" X 6" with PSA are available in select thicknesses and durometers. The aggressive pressure sensitive adhesive features a thin polyester film for dimensional stability and improved handling. The adhesive demonstrates exceptional temperature and chemical resistance. Firm application pressure and the amount of adhesive-to-surface contact combine to develop a strong bond.

Product PDF CAD Files
  • Typical applications
    • Custom Cut Isolating Components
    • Custom Cut Prototypes
    • Die Cut Parts
    • Edge-To-Edge Vibration and Shock Padding
    • Gaskets
  • More details
    Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and The amount of adhesive-to-surface contact, combines to develop superior bonding strength.
Part Number Dimensions Durometer +/-5 Thickness Tolerance
Part Number: 0208045-40-10 Dimensions: 0.040 x 6 x 4 Durometer +/-5: 40 Thickness Tolerance: ±0.010
Part Number: 0208045-50-10 Dimensions: 0.040 x 6 x 4 Durometer +/-5: 50 Thickness Tolerance: ±0.010
Part Number: 0208045-60-10 Dimensions: 0.040 x 6 x 4 Durometer +/-5: 60 Thickness Tolerance: ±0.010
Part Number: 0208045-70-10 Dimensions: 0.040 x 6 x 4 Durometer +/-5: 70 Thickness Tolerance: ±0.010
Part Number: 0208065-40-10 Dimensions: 0.060 x 6 x 4 Durometer +/-5: 40 Thickness Tolerance: ±0.010
Part Number: 0208065-50-10 Dimensions: 0.060 x 6 x 4 Durometer +/-5: 50 Thickness Tolerance: ±0.010
Part Number: 0208065-60-10 Dimensions: 0.060 x 6 x 4 Durometer +/-5: 60 Thickness Tolerance: ±0.010
Part Number: 0208065-70-10 Dimensions: 0.060 x 6 x 4 Durometer +/-5: 70 Thickness Tolerance: ±0.010
