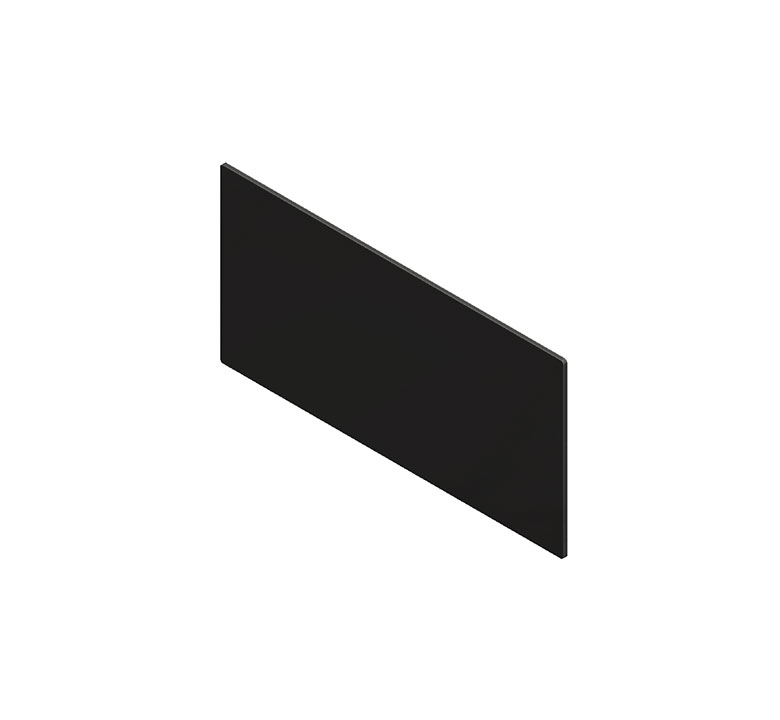

Sheet Stock 6" X 12" With PSA

Sorbothane® Sheets 6" X 12" with PSA are available in select thicknesses and durometers. The aggressive pressure sensitive adhesive features a thin polyester film for dimensional stability and improved handling. The adhesive demonstrates exceptional temperature and chemical resistance. Firm application pressure and the amount of adhesive-to-surface contact combine to develop a strong bond.

Product PDF CAD Files
  • Typical applications
    • Custom Cut Isolating Components
    • Custom Cut Prototypes
    • Die Cut Parts
    • Edge-To-Edge Vibration and Shock Padding
    • Gaskets
  • More details
    Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and The amount of adhesive-to-surface contact, combines to develop superior bonding strength.
Part Number Dimensions Durometer Thickness Tolerance
Part Number: 0206110-30-10 Dimensions: 0.100 x 12 x 6 Durometer: 30 Thickness Tolerance: ±0.020
Part Number: 0206110-40-10 Dimensions: 0.100 x 12 x 6 Durometer: 40 Thickness Tolerance: ±0.020
Part Number: 0206110-50-10 Dimensions: 0.100 x 12 x 6 Durometer: 50 Thickness Tolerance: ±0.020
Part Number: 0206110-60-10 Dimensions: 0.100 x 12 x 6 Durometer: 60 Thickness Tolerance: ±0.020
Part Number: 0206110-70-10 Dimensions: 0.100 x 12 x 6 Durometer: 70 Thickness Tolerance: ±0.020
Part Number: 0206112-30-10 Dimensions: 0.125 x 12 x 6 Durometer: 30 Thickness Tolerance: ±0.025
Part Number: 0206112-40-10 Dimensions: 0.125 x 12 x 6 Durometer: 40 Thickness Tolerance: ±0.025
Part Number: 0206112-50-10 Dimensions: 0.125 x 12 x 6 Durometer: 50 Thickness Tolerance: ±0.025
Part Number: 0206112-60-10 Dimensions: 0.125 x 12 x 6 Durometer: 60 Thickness Tolerance: ±0.025
Part Number: 0206112-70-10 Dimensions: 0.125 x 12 x 6 Durometer: 70 Thickness Tolerance: ±0.025
Part Number: 0206119-30-10 Dimensions: 0.188 x 12 x 6 Durometer: 30 Thickness Tolerance: ±0.025
Part Number: 0206119-40-10 Dimensions: 0.188 x 12 x 6 Durometer: 40 Thickness Tolerance: ±0.025
Part Number: 0206119-50-10 Dimensions: 0.188 x 12 x 6 Durometer: 50 Thickness Tolerance: ±0.025
Part Number: 0206119-60-10 Dimensions: 0.188 x 12 x 6 Durometer: 60 Thickness Tolerance: ±0.025
Part Number: 0206119-70-10 Dimensions: 0.188 x 12 x 6 Durometer: 70 Thickness Tolerance: ±0.025
Part Number: 0206126-30-10 Dimensions: 0.250 x 12 x 6 Durometer: 30 Thickness Tolerance: ±0.025
Part Number: 0206126-40-10 Dimensions: 0.250 x 12 x 6 Durometer: 40 Thickness Tolerance: ±0.025
Part Number: 0206126-50-10 Dimensions: 0.250 x 12 x 6 Durometer: 50 Thickness Tolerance: ±0.025
Part Number: 0206126-60-10 Dimensions: 0.250 x 12 x 6 Durometer: 60 Thickness Tolerance: ±0.025
Part Number: 0206126-70-10 Dimensions: 0.250 x 12 x 6 Durometer: 70 Thickness Tolerance: ±0.025
