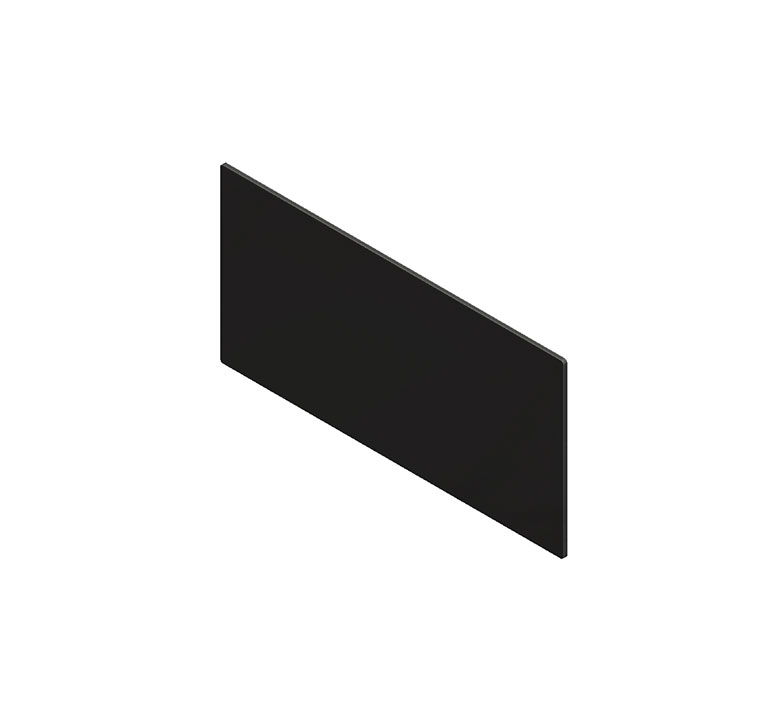

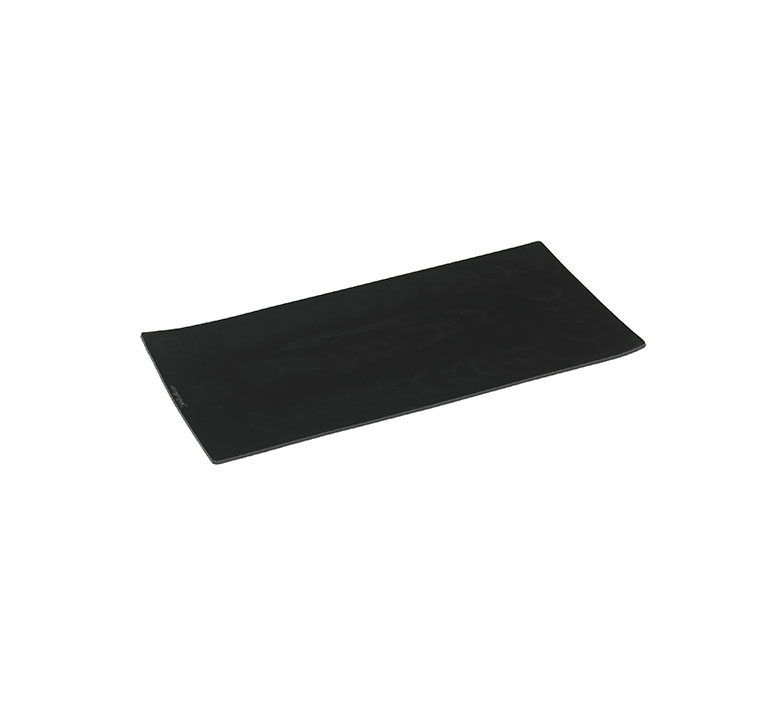

Sheet Stock 6" X 12"
Sorbothane® Sheets 6" X 12" are available in select sizes thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0206109-40-10 | 0.100 x 12 x 6 | 40 | ±0.015 |
| 0206109-50-10 | 0.100 x 12 x 6 | 50 | ±0.015 |
| 0206109-60-10 | 0.100 x 12 x 6 | 60 | ±0.015 |
| 0206109-70-10 | 0.100 x 12 x 6 | 70 | ±0.015 |
| 0206111-40-10 | 0.125 x 12 x 6 | 40 | ±0.020 |
| 0206111-50-10 | 0.125 x 12 x 6 | 50 | ±0.020 |
| 0206111-60-10 | 0.125 x 12 x 6 | 60 | ±0.020 |
| 0206111-70-10 | 0.125 x 12 x 6 | 70 | ±0.020 |
| 0206115-30-10 | 0.156 x 12 x 6 | 30 | ±0.020 |
| 0206115-40-10 | 0.156 x 12 x 6 | 40 | ±0.020 |
| 0206115-50-10 | 0.156 x 12 x 6 | 50 | ±0.020 |
| 0206115-60-10 | 0.156 x 12 x 6 | 60 | ±0.020 |
| 0206115-70-10 | 0.156 x 12 x 6 | 70 | ±0.020 |
| 0206118-30-10 | 0.188 x 12 x 6 | 30 | ±0.020 |
| 0206118-40-10 | 0.188 x 12 x 6 | 40 | ±0.020 |
| 0206118-50-10 | 0.188 x 12 x 6 | 50 | ±0.020 |
| 0206118-60-10 | 0.188 x 12 x 6 | 60 | ±0.020 |
| 0206118-70-10 | 0.188 x 12 x 6 | 70 | ±0.020 |
| 0206125-30-10 | 0.250 x 12 x 6 | 30 | ±0.025 |
| 0206125-40-10 | 0.250 x 12 x 6 | 40 | ±0.025 |
| 0206125-50-10 | 0.250 x 12 x 6 | 50 | ±0.025 |
| 0206125-60-10 | 0.250 x 12 x 6 | 60 | ±0.025 |
| 0206125-70-10 | 0.250 x 12 x 6 | 70 | ±0.025 |
