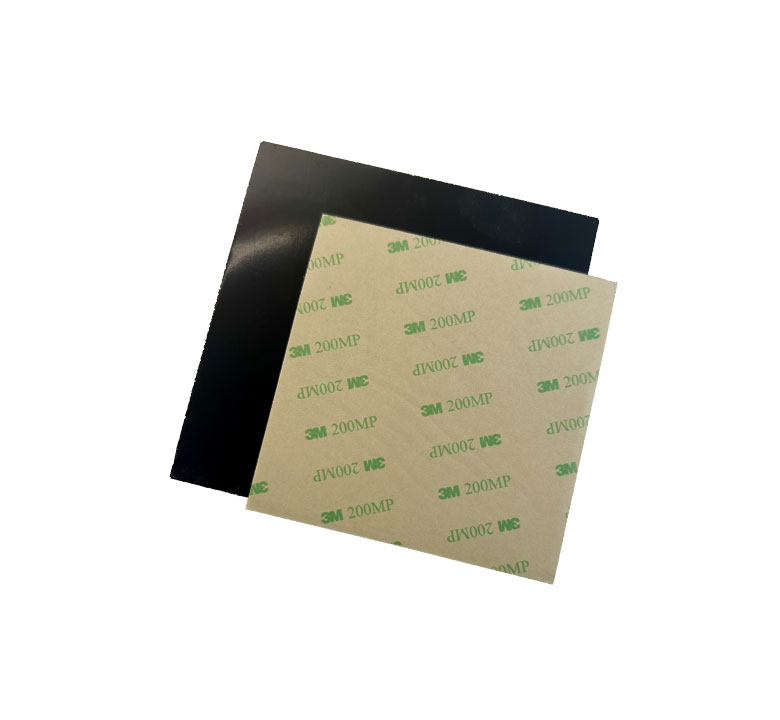

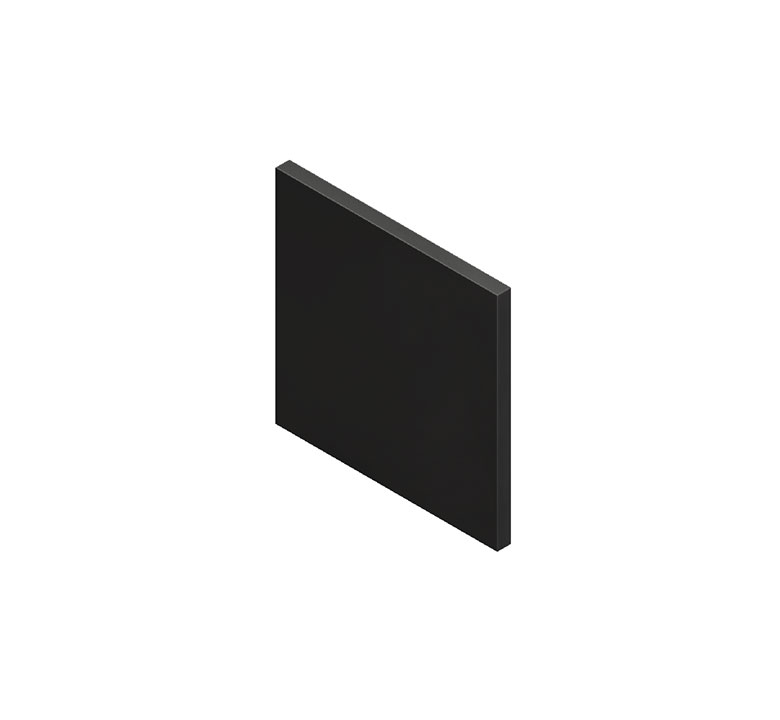

Sheet Stock 7" X 7" With PSA
Sorbothane® Sheets 7" X 7" with PSA are available in select thicknesses and durometers. The aggressive pressure sensitive adhesive features a thin polyester film for dimensional stability and improved handling. The adhesive demonstrates exceptional temperature and chemical resistance. Firm application pressure and the amount of adhesive-to-surface contact combine to develop a strong bond.
Product PDF CAD Files-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
-
More details
Aggressive pressure sensitive double coated adhesive tape adds a thin polyester film for dimensional stability and improved handling. The adhesive provides exceptional temperature and chemical resistance and withstands tough environments. Firm application pressure, and The amount of adhesive-to-surface contact, combines to develop superior bonding strength.
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0208049-40-10 | 0.040 x 7 x 7 | 40 | ±0.007 |
| 0208049-50-10 | 0.040 x 7 x 7 | 50 | ±0.007 |
| 0208049-60-10 | 0.040 x 7 x 7 | 60 | ±0.007 |
| 0208049-70-10 | 0.040 x 7 x 7 | 70 | ±0.007 |
| 0277065-40-10 | 0.060 x 7 x 7 | 40 | ±0.010 |
| 0277065-50-10 | 0.060 x 7 x 7 | 50 | ±0.010 |
| 0277065-60-10 | 0.060 x 7 x 7 | 60 | ±0.010 |
| 0277065-70-10 | 0.060 x 7 x 7 | 70 | ±0.010 |
