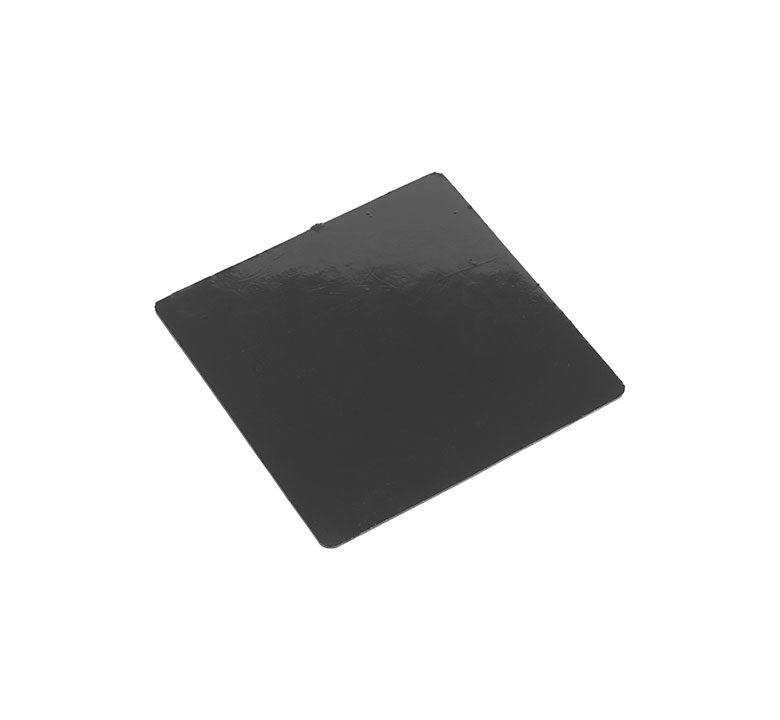

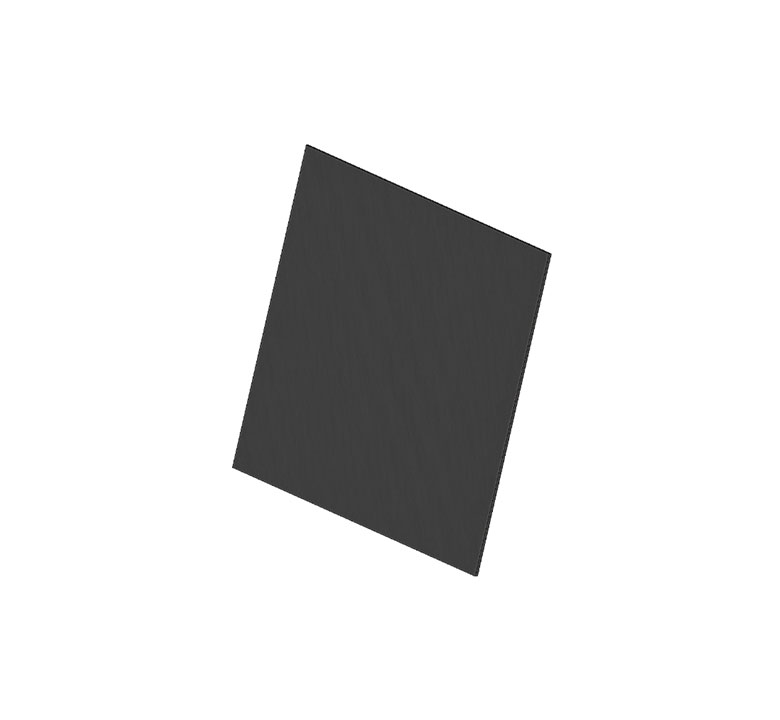

Sheet Stock 7" X 7"
Sorbothane® Sheets 7" X 7" are available in select thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0208047-40-10 | 0.040 x 7 x 7 | 40 | ±0.007 |
| 0208047-50-10 | 0.040 x 7 x 7 | 50 | ±0.007 |
| 0208047-60-10 | 0.040 x 7 x 7 | 60 | ±0.007 |
| 0208047-70-10 | 0.040 x 7 x 7 | 70 | ±0.007 |
| 0277060-40-10 | 0.060 x 7 x 7 | 40 | ±0.007 |
| 0277060-50-10 | 0.060 x 7 x 7 | 50 | ±0.007 |
| 0277060-60-10 | 0.060 x 7 x 7 | 60 | ±0.007 |
| 0277060-70-10 | 0.060 x 7 x 7 | 70 | ±0.007 |
