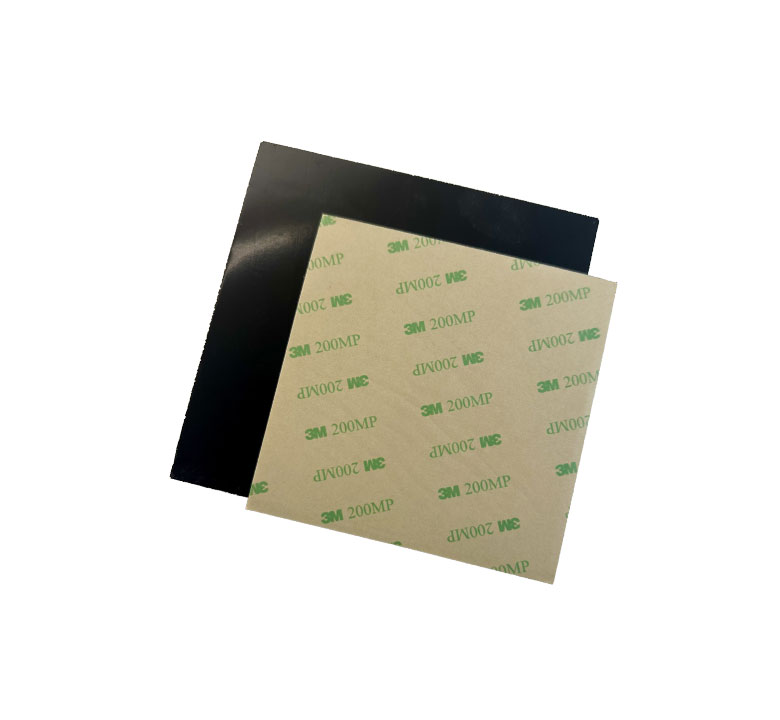

Small Sheet Stock 4" X 4" With PSA
Sorbothane® Sheets with PSA are available in several sizes, thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut. The aggressive pressure sensitive adhesive features a thin polyester film for dimensional stability and improved handling. The adhesive demonstrates exceptional temperature and chemical resistance. Firm application pressure and the amount of adhesive-to-surface contact combine to develop a strong bond.

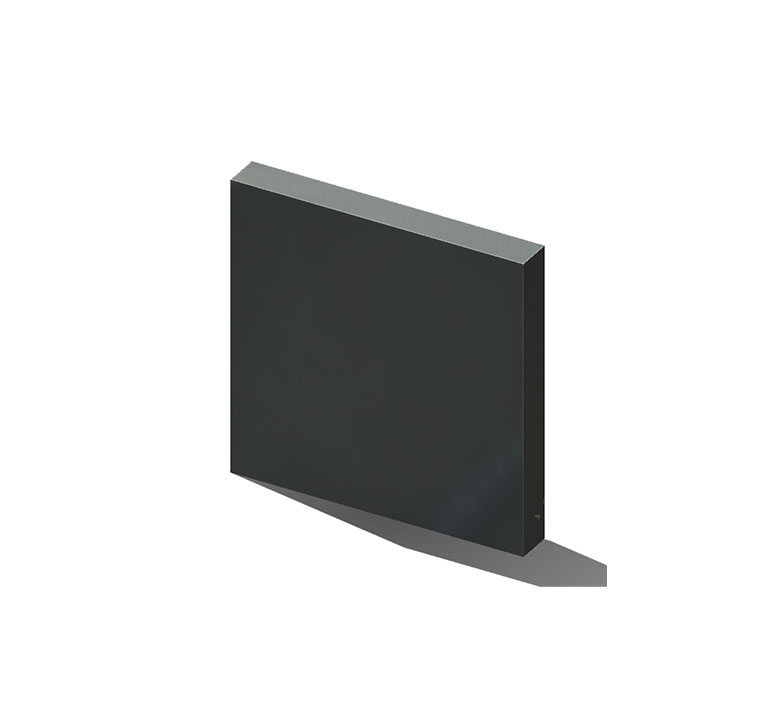

Product PDF CAD Models-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0204051-30-10 | 0.500 x 4 x 4 | 30 | ±0.030 |
| 0204051-40-10 | 0.500 x 4 x 4 | 40 | ±0.030 |
| 0204051-50-10 | 0.500 x 4 x 4 | 50 | ±0.030 |
| 0204051-60-10 | 0.500 x 4 x 4 | 60 | ±0.030 |
| 0204051-70-10 | 0.500 x 4 x 4 | 70 | ±0.030 |
