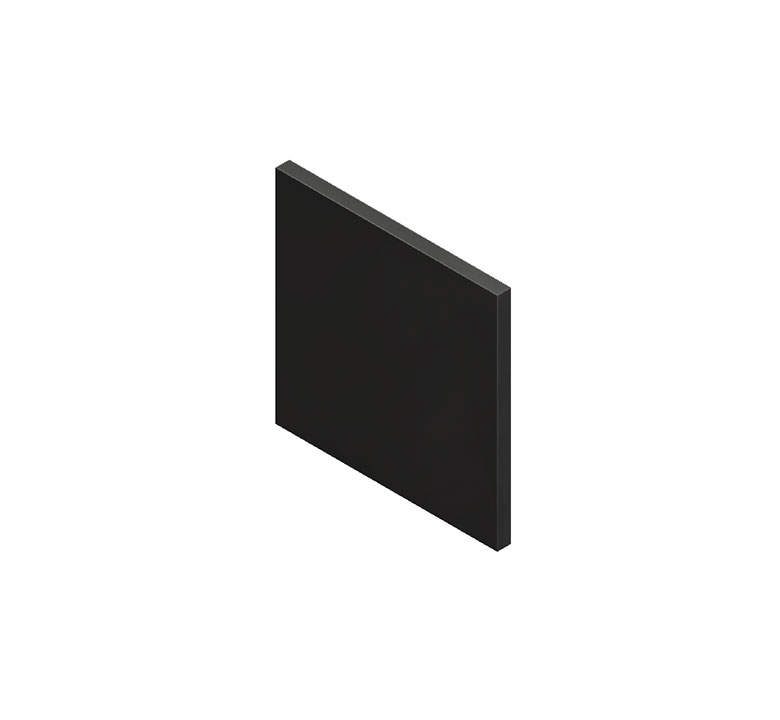

Small Sheet Stock 4" X 4"
Sorbothane® Sheets, 4" X 4" are available in select thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0204010-30-10 | 0.100 x 4 x 4 | 30 | ±0.015 |
| 0204010-50-10 | 0.100 x 4 x 4 | 50 | ±0.015 |
| 0204010-70-10 | 0.100 x 4 x 4 | 70 | ±0.015 |
| 0204012-30-10 | 0.125 x 4 x 4 | 30 | ±0.020 |
| 0204012-50-10 | 0.125 x 4 x 4 | 50 | ±0.020 |
| 0204012-70-10 | 0.125 x 4 x 4 | 70 | ±0.020 |
| 0204018-30-10 | 0.188 x 4 x 4 | 30 | ±0.020 |
| 0204018-50-10 | 0.188 x 4 x 4 | 50 | ±0.020 |
| 0204018-70-10 | 0.188 x 4 x 4 | 70 | ±0.020 |
| 0204025-30-10 | 0.250 x 4 x 4 | 30 | ±0.025 |
| 0204025-50-10 | 0.250 x 4 x 4 | 50 | ±0.025 |
| 0204025-70-10 | 0.250 x 4 x 4 | 70 | ±0.025 |
| 0204037-30-10 | 0.375 x 4 x 4 | 30 | ±0.025 |
| 0204037-50-10 | 0.375 x 4 x 4 | 50 | ±0.025 |
| 0204037-70-10 | 0.375 x 4 x 4 | 70 | ±0.025 |
| 0204050-30-10 | 0.500 x 4 x 4 | 30 | ±0.035 |
| 0204050-50-10 | 0.500 x 4 x 4 | 50 | ±0.035 |
| 0204050-70-10 | 0.500 x 4 x 4 | 70 | ±0.035 |
