Washers With PSA

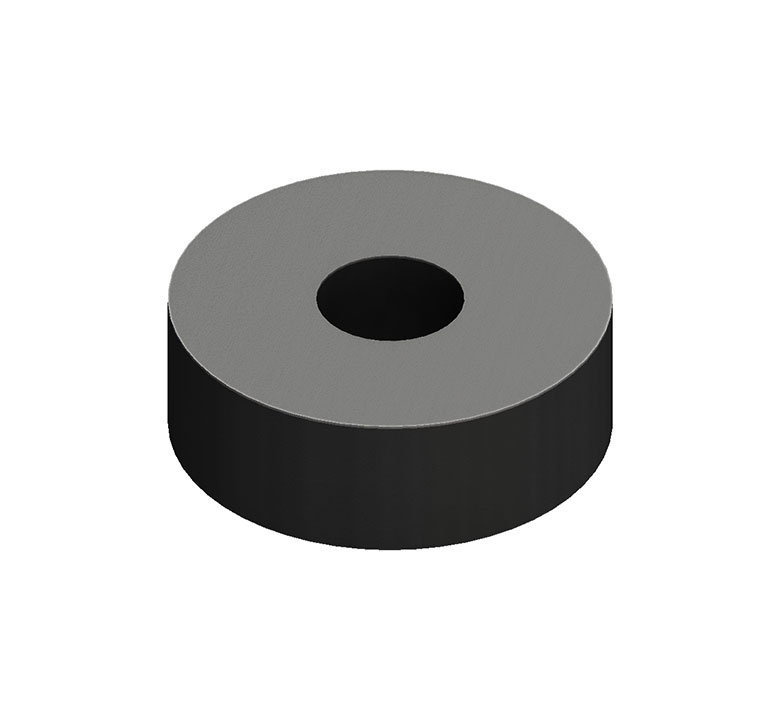

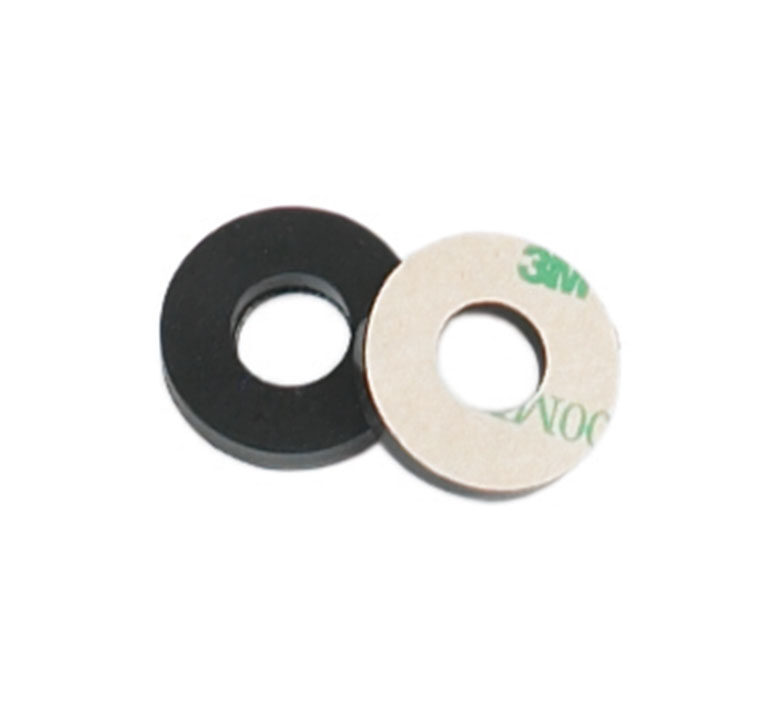

Sorbothane® Washers with Pressure Sensitive Adhesive (PSA) are designed to isolate vibration and absorb shock. Using two bushings together or a bushing and washer(s), you can create a floating bolt that isolates the unit from any metal-to-metal contact. Different durometers allow for different spring rates. Load ratings assume a 10%-20% deflection of the material. This deflection is achieved by a combination of system weight and torquing of the connecting bolts. Do not over torque the bolts as this defeats the intended vibration isolation and shortens bushing life. Use a high-quality (thread deforming) lock nut. Bushings may be used in tension connections.
Product PDF CAD Files-
Typical applications
- Floating Bolt
- Increase Equipment Life
- Isolate Anchors
- Isolate Bolts
- Prevent Metal-To-Metal Contact
| Part Number | Outer Diameter |
Inner Diameter |
Height | Durometer +/-5 | Load Rating |
|---|---|---|---|---|---|
| 0510003-30-10 | 1.000 | 0.450 | 0.190 | 30 | 1 - 2 lbs |
| 0510003-50-10 | 1.000 | 0.450 | 0.190 | 50 | 3.5 - 8 lbs |
| 0510003-70-10 | 1.000 | 0.450 | 0.190 | 70 | 15 - 35 lbs |
| 0510051-30-10 | 1.500 | 0.500 | 0.500 | 30 | 2 - 4 lbs |
| 0510051-50-10 | 1.500 | 0.500 | 0.500 | 50 | 6 - 14 lbs |
| 0510051-70-10 | 1.500 | 0.500 | 0.500 | 70 | 30 - 65 lbs |
