Washers

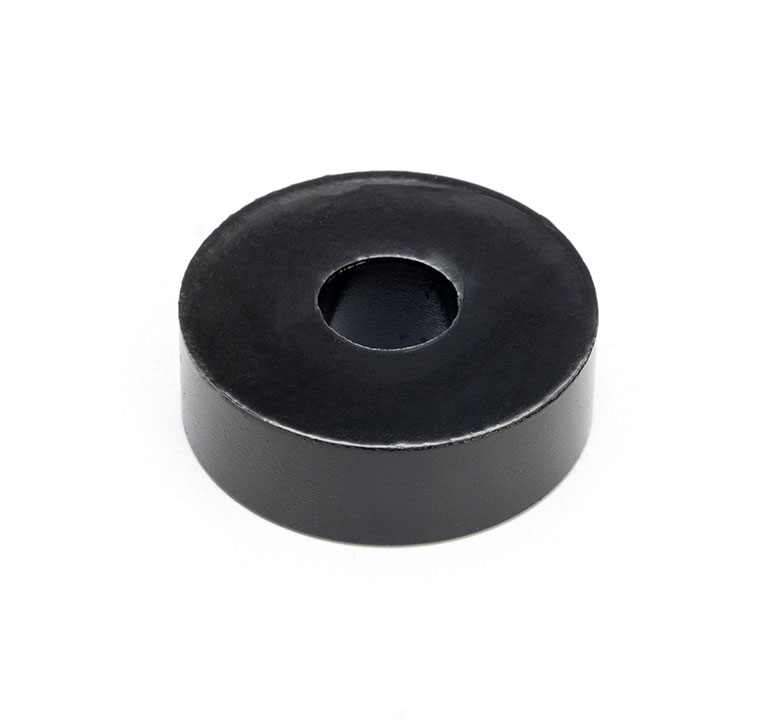

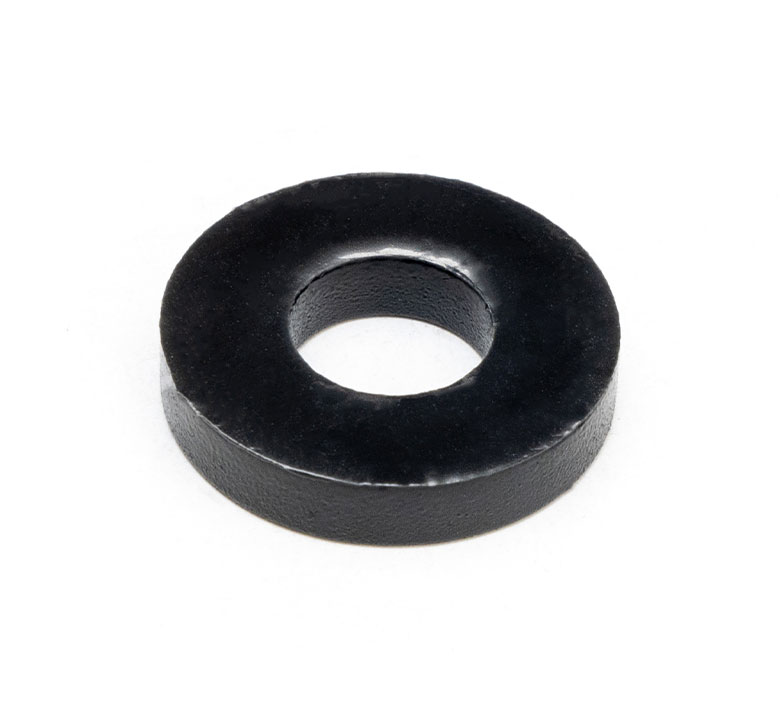

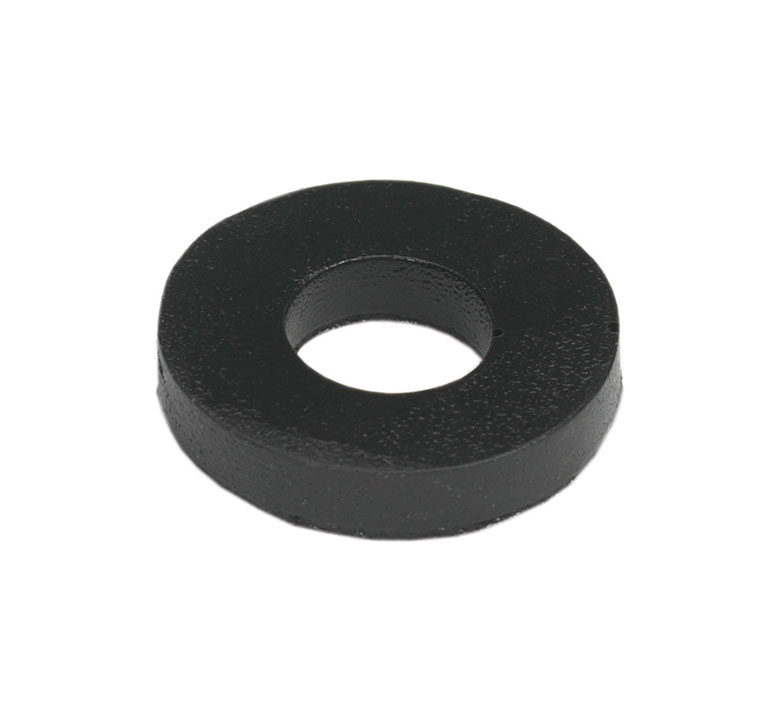

Sorbothane® Washers are designed to isolate vibration and absorb shock. Using two bushings together or a bushing and washer(s), you can create a floating bolt that isolates the unit from any metal-to-metal contact. Different durometers allow for different spring rates. Load ratings assume a 10%-20% deflection of the material. This deflection is achieved by a combination of system weight and torquing of the connecting bolts. Do not over torque the bolts as this defeats the intended vibration isolation and shortens bushing life. Use a high-quality (thread deforming) lock nut. Bushings may be used in tension connections.
Product PDF CAD Files-
Typical applications
- Floating Bolt
- Increase Equipment Life
- Isolate Anchors
- Isolate Bolts
- Prevent Metal-To-Metal Contact
| Part Number | Outer Diameter |
Inner Diameter |
Height | Durometer +/-5 | Load Rating |
|---|---|---|---|---|---|
| 0510020-30-10 | 0.500 | 0.130 | 0.130 | 30 | 0.4 - 0.75 lbs |
| 0510020-50-10 | 0.500 | 0.130 | 0.130 | 50 | 1 - 2 lbs |
| 0510020-70-10 | 0.500 | 0.130 | 0.130 | 70 | 4 - 10 lbs |
| 0510010-30-10 | 0.500 | 0.224 | 0.189 | 30 | 0.2 - 0.4 lbs |
| 0510010-50-10 | 0.500 | 0.224 | 0.189 | 50 | 0.5 - 1.25 lbs |
| 0510010-70-10 | 0.500 | 0.224 | 0.189 | 70 | 2.5 - 6 lbs |
| 0510012-30-10 | 1.000 | 0.450 | 0.125 | 30 | 2.0 - 4.5 lbs |
| 0510012-50-10 | 1.000 | 0.450 | 0.125 | 50 | 5.75 - 13.5 lbs |
| 0510012-70-10 | 1.000 | 0.450 | 0.125 | 70 | 25.25 - 64 lbs |
| 0510001-30-10 | 1.000 | 0.450 | 0.190 | 30 | 1 - 2 lbs |
| 0510001-50-10 | 1.000 | 0.450 | 0.190 | 50 | 3.5 - 8 lbs |
| 0510001-70-10 | 1.000 | 0.450 | 0.190 | 70 | 15 - 35 lbs |
| 0510015-30-10 | 1.000 | 0.449 | 0.378 | 30 | 0.7 - 1.5 lbs |
| 0510015-50-10 | 1.000 | 0.450 | 0.378 | 50 | 2.25 - 5 lbs |
| 0510015-70-10 | 1.000 | 0.450 | 0.378 | 70 | 9.5 - 23.5 lbs |
| 0510045-30-10 | 1.250 | 0.500 | 0.380 | 30 | 2 - 3 lbs |
| 0510045-50-10 | 1.250 | 0.500 | 0.380 | 50 | 4.5 - 9 lbs |
| 0510045-70-10 | 1.250 | 0.500 | 0.380 | 70 | 20 - 40 lbs |
| 0510050-30-10 | 1.500 | 0.500 | 0.500 | 30 | 2 - 4 lbs |
| 0510050-50-10 | 1.500 | 0.500 | 0.500 | 50 | 6 - 14 lbs |
| 0510050-70-10 | 1.500 | 0.500 | 0.500 | 70 | 30 - 65 lbs |
