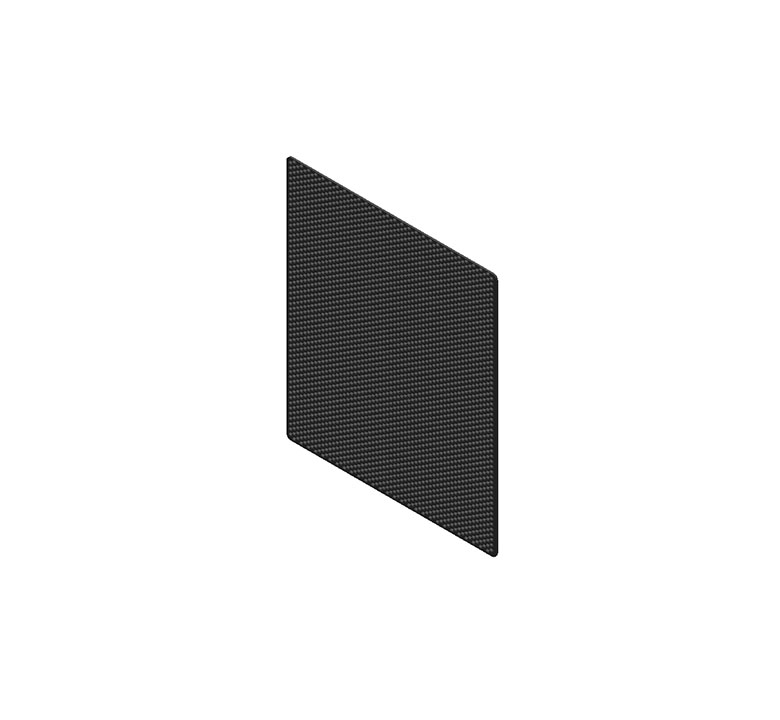

X-Tra Flex 12” X 14”
X-Tra Flex Sheet is molded with hemispherical bumps. The hemispheres permit the material to flex more easily and allow for soft deformation under load. Overall sheet thickness is approximately 0.185-inch. The hemispheres are approximately 0.09 high and 0.12 diameter. X-Tra Flex sheets are easier to apply to curved and irregular surfaces and provide a softer spring rate.
Product PDF CAD Files-
Typical applications
- Irregular Surface Application
- Medium to Heavy Equipment
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0225532-40-10 | 0.190 x 14 x 12 | 40 | ±0.025 |
| 0225532-50-10 | 0.190 x 14 x 12 | 50 | ±0.025 |
| 0225532-60-10 | 0.190 x 14 x 12 | 60 | ±0.025 |
| 0225532-70-10 | 0.190 x 14 x 12 | 70 | ±0.025 |
