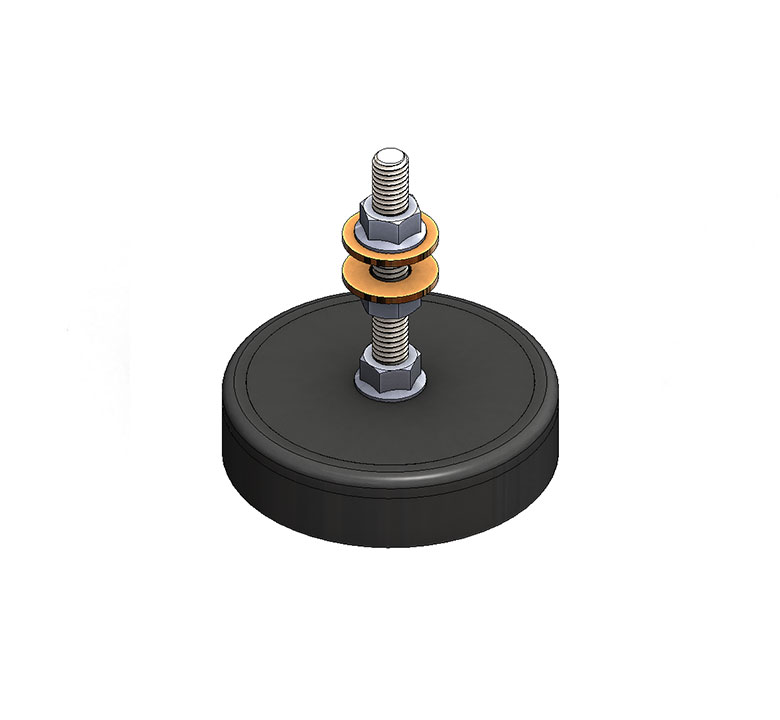

Anti-Vibration Leveling Mounts

Sorbothane® Anti-Vibration Leveling Mounts provide both leveling and vibration isolation. They are designed to handle a wide range of loads and varying environmental conditions. Major benefits of the mounts include their ability to isolate a system from unwanted vibration and resonance by lowering the natural frequency of the system. The dual urethane compounds compliment each other to provide a high degree of vibration and shock damping. These mounts provide a quick, cost-effective way to dissipate unwanted energy and correct for machine and floor leveling problems.

Product PDF CAD Files
Part Number Diameter Height Durometer Load Rating Thread Style Thread Thread Height
Part Number: 0510510-70-10 Diameter: 2.000 Height: 0.750 Durometer: 70 Load Rating: 75 - 185 lbs Thread Style: M Thread: 1/4 - 20 Thread Height: 1.875
Part Number: 0510505-70-10 Diameter: 2.250 Height: 0.750 Durometer: 70 Load Rating: 115 - 285 lbs Thread Style: M Thread: 1/4 - 20 Thread Height: 1.875
Part Number: 0510515-70-10 Diameter: 2.500 Height: 0.620 Durometer: 70 Load Rating: 195 - 485 lbs Thread Style: M Thread: 1/4 - 20 Thread Height: 1.875
Part Number: 0510520-70-10 Diameter: 2.500 Height: 0.620 Durometer: 70 Load Rating: 195 - 485 lbs Thread Style: M Thread: 3/8 - 16 Thread Height: 2.875
Part Number: 0510530-70-10 Diameter: 3.500 Height: 0.880 Durometer: 70 Load Rating: 370 - 925 lbs Thread Style: M Thread: 3/8 - 16 Thread Height: 2.875
Part Number: 0510525-70-10 Diameter: 3.500 Height: 0.620 Durometer: 70 Load Rating: 820 - 2070 lbs Thread Style: M Thread: 3/8 - 16 Thread Height: 2.875
