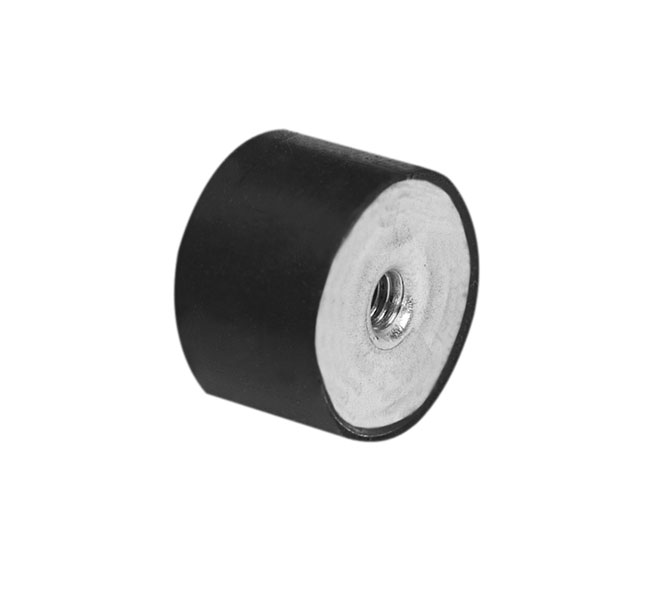

Sorbothane Female bumper

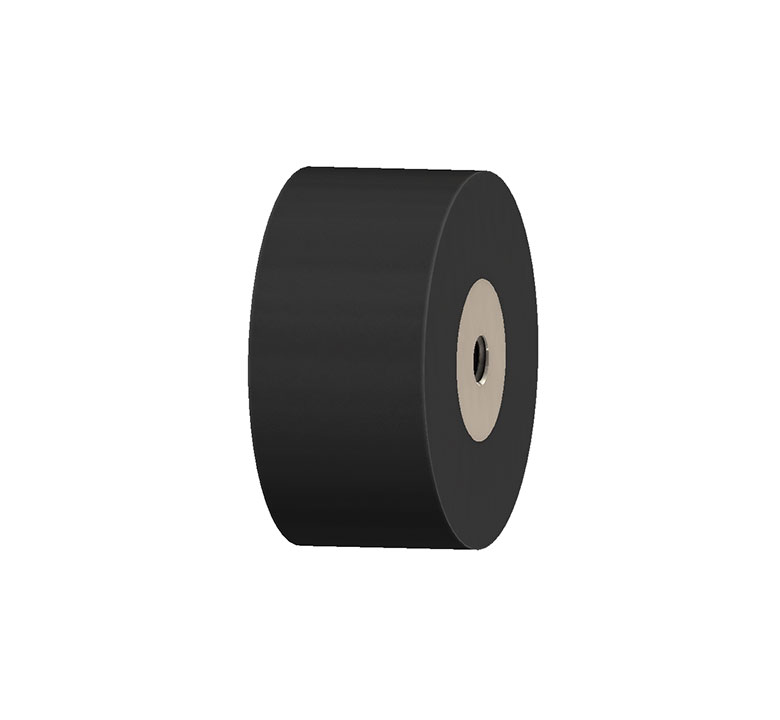

Rendering of a Sorbothane bumper female end
Sorbothane Female bumper
Rendering of a Sorbothane bumper female end

Bumpers Female

Sorbothane® Stud Mounts, female with metal inserts, are available in three standard sizes that utilize both UNC and metric threads. Other UNC and metric threads are available by special order. These Stud Mounts and Bumpers are designed for use in compression. Use high-quality (thread deforming) lock nuts or double jam nuts to assure your connections do not vibrate loose. High amplitude vibrations require special, heavy-duty inserts. Please consult with the Sorbothane engineering department.

Product PDF NEW: CAD Catalog
  • Typical applications
    • Audio components
    • Electronic Equipment
    • Light to Medium Weight Machinery
    • Scientific Instruments
    • Sensitive Testing Equipment
Part Number Diameter Height Durometer +/-5 Load Rating Thread Style Thread Thread Depth
Part Number: 0510313-50-10 Diameter: 0.750 Height: 0.500 Durometer +/-5: 50 Load Rating: 3 - 5 lbs Thread Style: F Thread: #8-32 Thread Depth: 0.250
Part Number: 0510313-70-10 Diameter: 0.750 Height: 0.500 Durometer +/-5: 70 Load Rating: 6 - 8 lbs Thread Style: F Thread: #8-32 Thread Depth: 0.250
Part Number: 0510333-50-10 Diameter: 1.500 Height: 1.000 Durometer +/-5: 50 Load Rating: 11 - 18 lbs Thread Style: F Thread: 1/4-20 Thread Depth: 0.350
Part Number: 0510333-70-10 Diameter: 1.500 Height: 1.000 Durometer +/-5: 70 Load Rating: 18 - 27 lbs Thread Style: F Thread: 1/4-20 Thread Depth: 0.350
Part Number: 0510353-50-10 Diameter: 1.750 Height: 0.850 Durometer +/-5: 50 Load Rating: 20 - 40 lbs Thread Style: F Thread: 1/4-20 Thread Depth: 0.350
Part Number: 0510353-70-10 Diameter: 1.750 Height: 0.850 Durometer +/-5: 70 Load Rating: 35 - 75 lbs Thread Style: F Thread: 1/4-20 Thread Depth: 0.350
Part Number: 0510413-50-10 Diameter: 19 mm Height: 12.70 mm Durometer +/-5: 50 Load Rating: 3 - 5 lbs Thread Style: F Thread: M4 Thread Depth: 6.35 mm
Part Number: 0510413-70-10 Diameter: 19 mm Height: 12.70 mm Durometer +/-5: 70 Load Rating: 6 - 8 lbs Thread Style: F Thread: M4 Thread Depth: 6.35 mm
Part Number: 0510433-50-10 Diameter: 38.10 mm Height: 25.40 mm Durometer +/-5: 50 Load Rating: 11 - 18 lbs Thread Style: F Thread: M6 Thread Depth: 8.90 mm
Part Number: 0510433-70-10 Diameter: 38.10 mm Height: 25.40 mm Durometer +/-5: 70 Load Rating: 18 - 27 lbs Thread Style: F Thread: M6 Thread Depth: 8.90 mm
Part Number: 0510453-50-10 Diameter: 44.50 mm Height: 21.60 mm Durometer +/-5: 50 Load Rating: 20 - 40 lbs Thread Style: F Thread: M6 Thread Depth: 8.90 mm
Part Number: 0510453-70-10 Diameter: 44.50 mm Height: 21.60 mm Durometer +/-5: 70 Load Rating: 35 - 75 lbs Thread Style: F Thread: M6 Thread Depth: 8.90 mm
