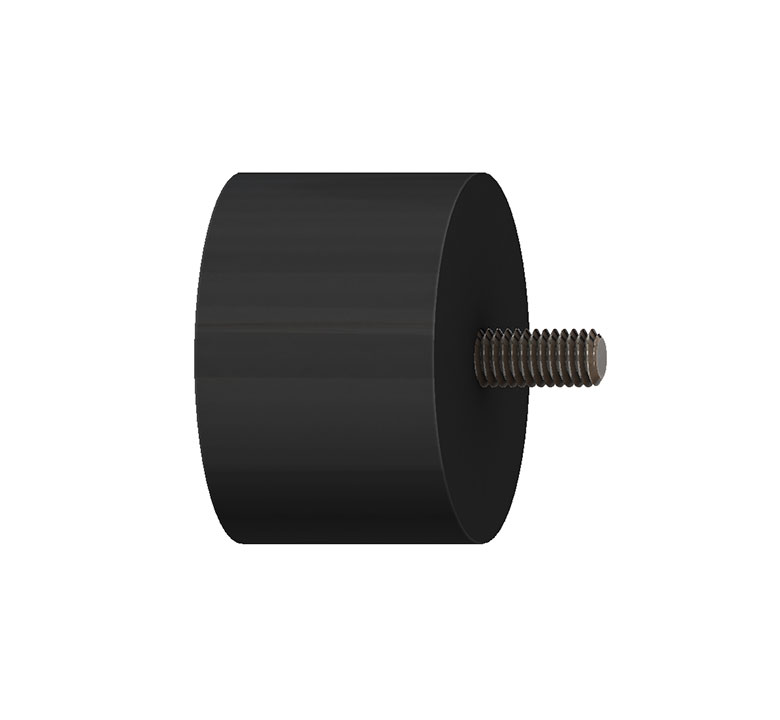

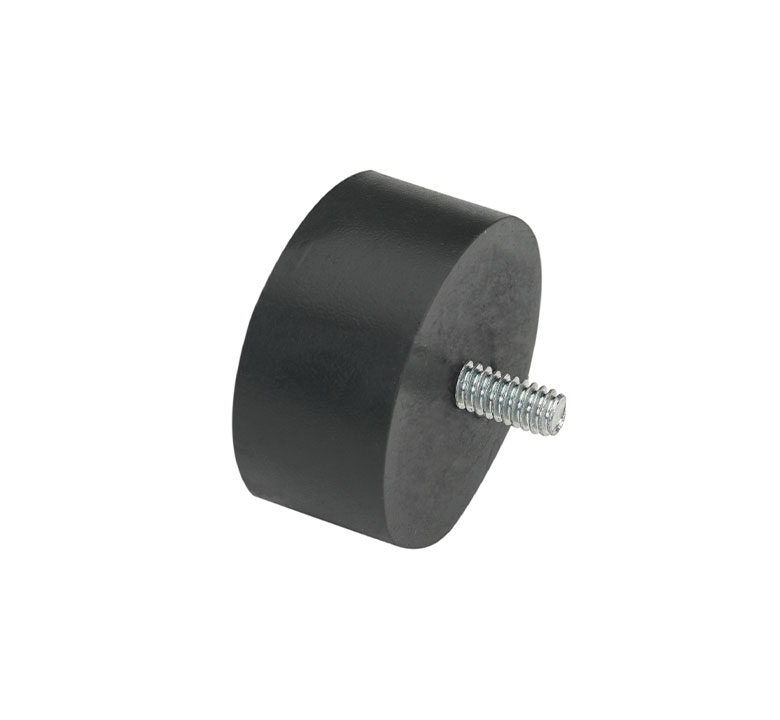

Bumpers Male
Sorbothane® Stud Mounts, male with metal inserts, are available in three standard sizes that utilize both UNC and metric threads. Other UNC and metric threads are available by special order. These Stud Mounts and Bumpers are designed for use in compression. Use high-quality (thread deforming) lock nuts or double jam nuts to assure your connections do not vibrate loose. High amplitude vibrations require special, heavy-duty inserts. Please consult with the Sorbothane engineering department.
Product PDF CAD Files-
Typical applications
- Audio components
- Electronic Equipment
- Light to Medium Weight Machinery
- Scientific Instruments
- Sensitive Testing Equipment
| Part Number | Diameter | Height | Durometer +/-5 | Load Rating | Thread Style | Thread | Thread Length |
|---|---|---|---|---|---|---|---|
| 0510312-50-10 | 0.750 | 0.500 | 50 | 2 - 4 lbs | M | #8-32 | 0.470 |
| 0510312-70-10 | 0.750 | 0.500 | 70 | 7 - 16 lbs | M | #8-32 | 0.470 |
| 0510332-50-10 | 1.500 | 1.000 | 50 | 7 - 14 lbs | M | 1/4-20 | 0.500 |
| 0510332-70-10 | 1.500 | 1.000 | 70 | 30 - 65 lbs | M | 1/4-20 | 0.500 |
| 0510352-50-10 | 1.750 | 0.850 | 50 | 10 - 22 lbs | M | 1/4-20 | 0.500 |
| 0510352-70-10 | 1.750 | 0.850 | 70 | 45 - 100 lbs | M | 1/4-20 | 0.500 |
| 0510412-50-10 | 19 mm | 12.70 mm | 50 | 2 - 4 lbs | M | M4 | 12 mm |
| 0510412-70-10 | 19 mm | 12.70 mm | 70 | 7 - 16 lbs | M | M4 | 12 mm |
| 0510432-50-10 | 38.10 mm | 25.40 mm | 50 | 7 - 14 lbs | M | M6 | 12.70 mm |
| 0510432-70-10 | 38.10 mm | 25.40 mm | 70 | 30 - 65 lbs | M | M6 | 12.70 mm |
| 0510452-50-10 | 44.50 mm | 21.60 mm | 50 | 10 - 22 lbs | M | M6 | 12.70 mm |
| 0510452-70-10 | 44.50 mm | 21.60 mm | 70 | 45 - 100 lbs | M | M6 | 12.70 mm |
